XLPE Insulated SWA Armoured PVC Sheathed YJV32 Power Cables

XLPE Insulated SWA Armoured PVC Sheathed YJV₃₂ Power Cables, 0.6/1kV, CU/XLPE/PVC/SWA/PVC, copper conductor, XLPE insulation, PVC inner sheath, steel wire armored, PVC out sheath, meet to GB/T 12706, IEC 60502, BS 5467.

Brand:
Hante，HANTE
Item NO.:
XTD-YJV32-01
Order(MOQ):
100 meters
Payment:
T/T 30% the deposit, the balance will be paid
Market Price:
$/M 38.88
Price:
$36.88/38.78 per meter
Product Origin:
Hubei Province, China.
Color:
Black or others.
Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.
Lead Time：
Within 15-20 working days as soon as we
Weight：
1350 KG/KM

Inquiry now

Product Detail

XLPE Insulated Steel Wire Armoured PVC Sheathed YJV₃₂ Power Cables

MAIN KEYWORDS

YJV₃₂ power cable, BS 5467 SWA cable, CV-SWA, CU/XLPE/PVC/SWA/PVC power cable, XLPE insulated SWA power cable.

APPLICATION CHARACTERISTICS

XLPE Insulated Steel Wire Armored PVC Sheathed YJV₃₂ Power Cables, copper conductor, XLPE insulation, PVC inner sheath, steel wire armoured, PVC out sheath, U₀/U: 0.6/1kV.

It applies to electrical power transmission and distribution lines with AC rated voltage U₀/U up to and including 0.6/1kV. For outdoor and indoor installation in damp and wet locations, laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying, as well as in locations susceptible to sliding.

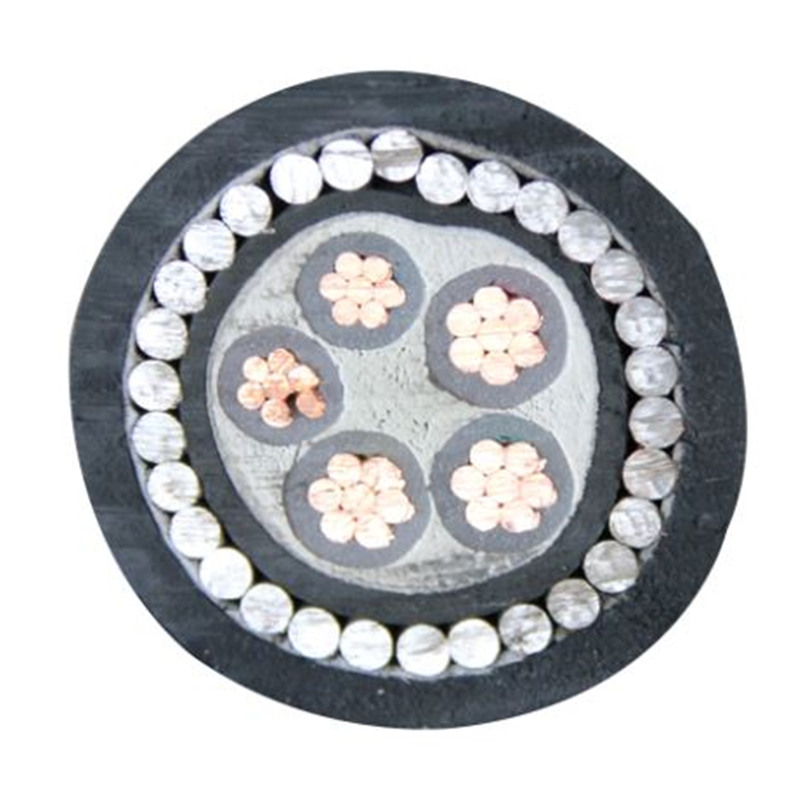

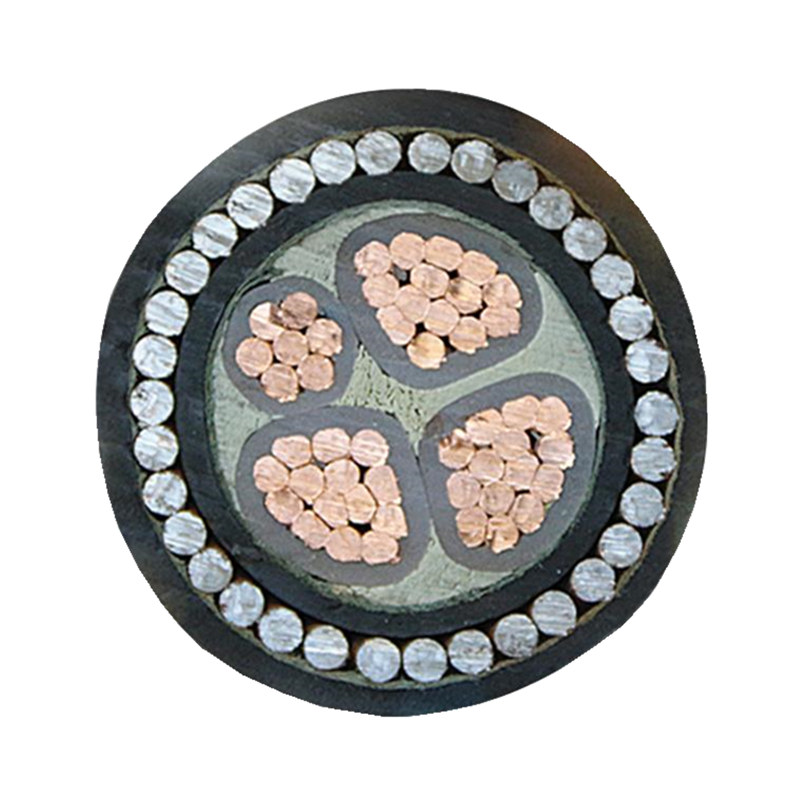

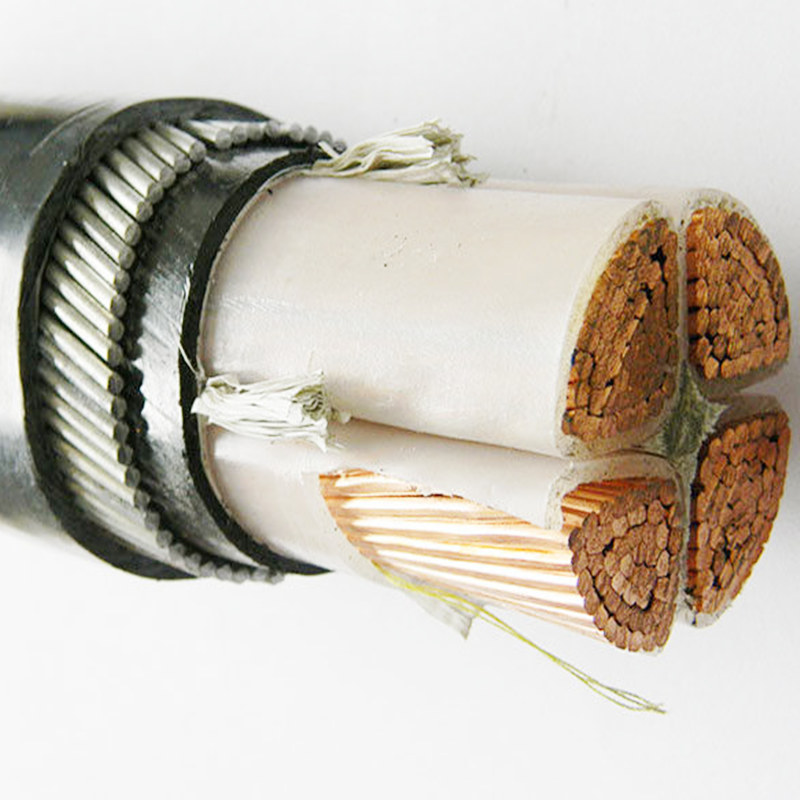

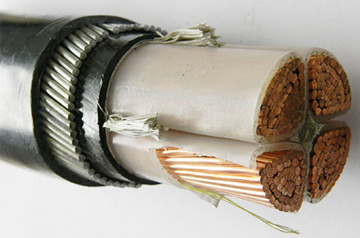

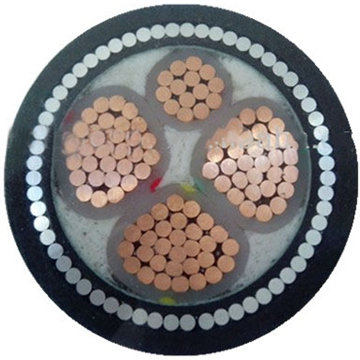

PRODUCTS STRUCTURE

---Conductor Material

Plain annealed copper wire, solid class 1, or strand class 2.

---Insulation Material

XLPE (cross-linked polyethylene)

---Insulation Color

1C: brown, blue, red, yellow, green, black, or others.

2C: brown, blue

3C: brown, blue, yellow/green

4C: brown, blue, black, yellow/green,

5C: brown, blue, black, grey, yellow/green

Remark: the insulated color is nature, and close to transparent, then it with a colored tape.

---Filler Material

Fiberglass tape.

---Cabling Material

Non-woven fabrics

---Inner Sheath Material

PVC (Polyvinyl chloride)

---Armored Material

Galvanized steel wire

---Sheath Material (out insulation)

PVC (polyvinyl chloride)

---Sheath Color

Black, or others.

---Core Number

2～5 cores, 2C～5C.

---Voltage Rate (U₀/U)

0.6/1kV, 600/1000V (U_m: 1.2kV).

---Working Temperature

-15℃～+90℃.

---Minimum Bending Radius

Fixed: 20 x Out Diameter.

---Production Standard

GB/T 12706, IEC 60502, BS 5467

---Products Delivery

Within 15-20 working days as soon as we received the deposit.

REMARK

---The above information is only for you reference, for the formal technical data, please refer to the actual cables.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, but the production process and insulation materials maybe has a few of different.

---For the YJV₃₂ power cable, according to the practice, the common specification is 70～240 mm².

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

RAW MATERIAL

PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?

Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?

For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?

It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?

Yes, could print your company name, we even custom the quality card to promote your company.
