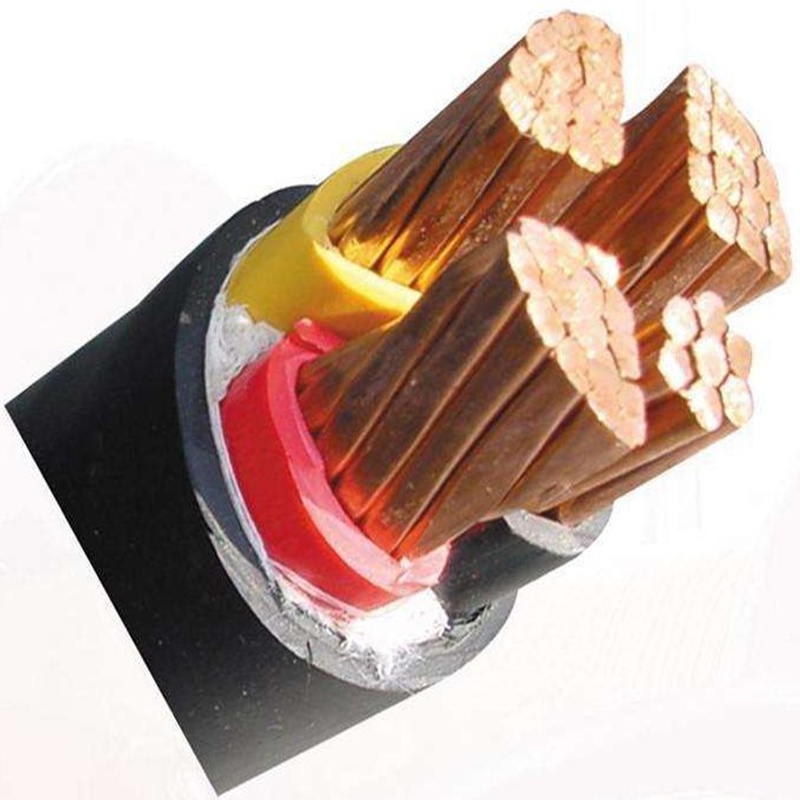

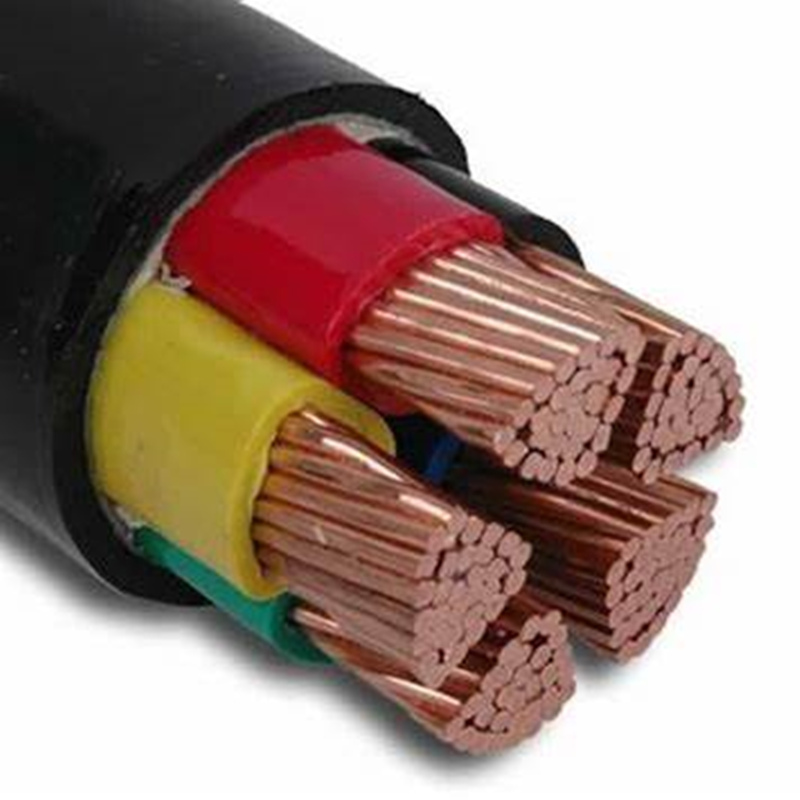

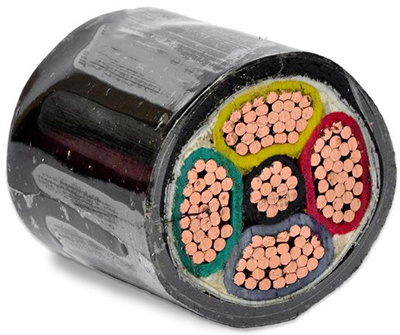

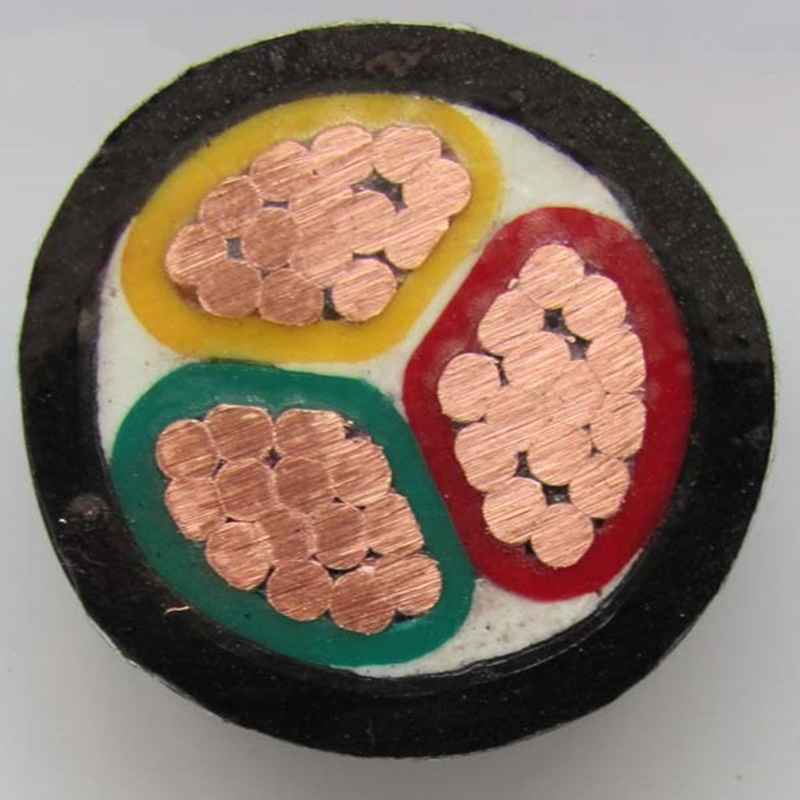

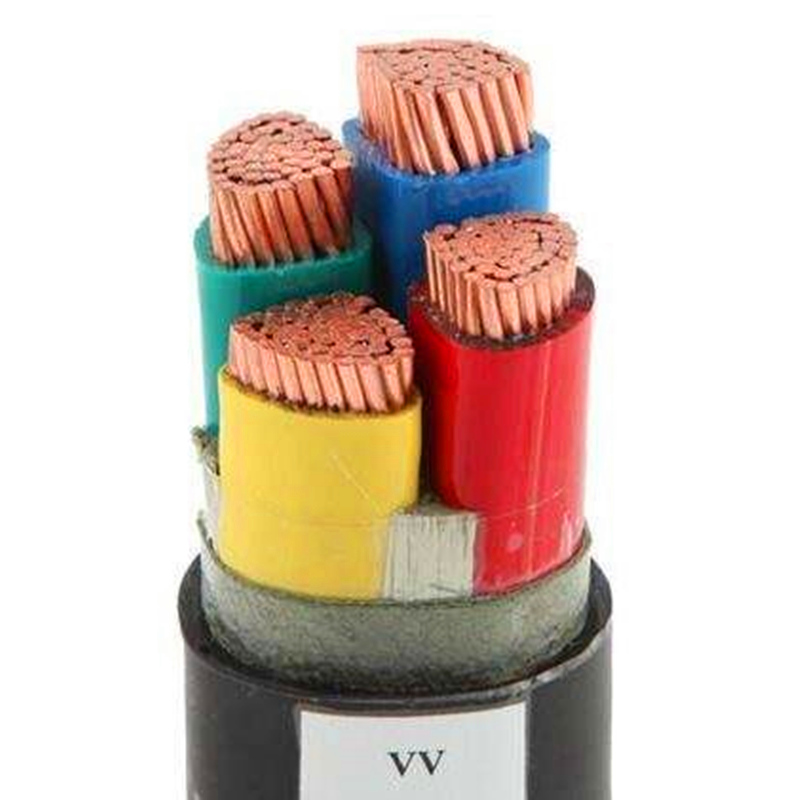

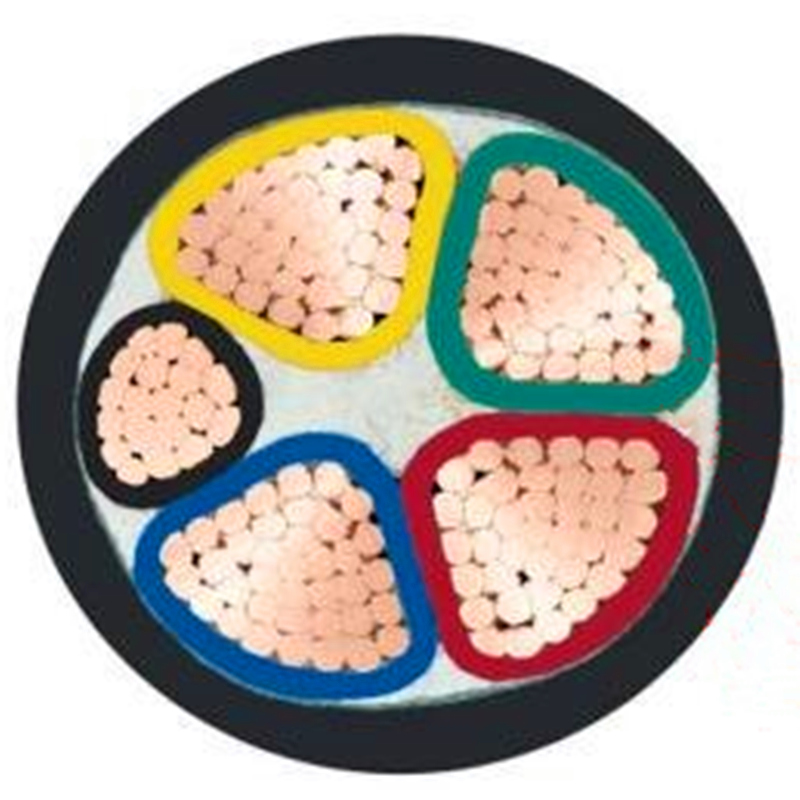

NYY PVC Insulated PVC Sheathed VV Power Cables 0.6/1kV

NYY PVC Insulated PVC Sheathed Un-armored VV Power Cables

MAIN KEYWORDS

VV, NYY, NAYY, NYY-J, NYY-O, E-YY, CU/PVC/PVC power cable, PVC 0.6/1kV power cable.

APPLICATION CHARACTERISTICS

NYY single core or multi-cores un-armored VV power cable, it applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1kV. For outdoor and indoor installation in damp and wet locations, lay directly in the ground (when well protect in ducts, in trenches and in steel support brackets).

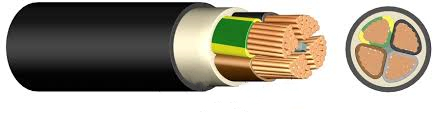

PRODUCTS STRUCTURE

---Conductor Material

   Pure annealed copper wire, solid class 1, or strand class 2.

---Insulation Material (inner insulation)

   PVC (polyvinyl chloride).

---Insulation Colour

   2C: brown, blue

   3C: brown, blue, yellow/green

   4C: brown, blue, black, yellow/green,

   5C: brown, blue, black, grey, yellow/green

   Remark: we will choose other colors according to the customer request.

---Filler Material

    Fiberglass tape, or PVC (Polyvinyl chloride).

---Inner Sheath (Cabling Material)

   Non-woven fabrics, or PVC (Polyvinyl chloride)

---Sheath Material (out insulation)

   PVC (polyvinyl chloride)

---Sheath Colour

   Black, or others.

---Core Number

   2～5 cores, 2C～5C.

---Voltage Rate(U0/U)

   0.6/1kV, 600/1000V (Um: 1.2kV).

---Working Temperature

   -15℃～+70℃.

---Minimum Bending Radius

   Fixed: 12 x Out Diameter.

---Production Standard

   GB/T 12706, IEC 60502, BS EN/IEC60502, BS 7870, DIN VDE 0276.

---Products Delivery

   Within 7-10 working days as soon as we received the deposit.

REMARK

---The above information is only for you reference, for the formal technical data, please refer to the actual cables.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 & 105 degree, but the production process and insulation materials maybe has a few of different.

---For the NYY VV power cable, according to the practice, the common specification is 25～300 mm2.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
