VV32 PVC Insulated SWA Armoured PVC Sheathed Power Cables

VV₃₂ PVC Insulated SWA Armored PVC Sheathed Power Cables, 0.6/1kV, CU/PVC/PVC/SWA/PVC, copper wire, PVC insulation, PVC inner sheath, steel wire armored, PVC sheath, meet to GB/T 12706, IEC 60502, BS 6346.

Generally speaking, steel wire armored cables have the characteristics of steel tape armored cables, and it can be laid vertically, but steel tape armored cables can only be laid horizontally.

Brand:
Hante，HANTE
Item NO.:
XTD-VV32-01
Order(MOQ):
100 meters
Payment:
T/T 30% the deposit, the balance will be paid
Market Price:
$/M 45.25
Price:
$38.82/42.58 per meter
Product Origin:
Hubei Province, China.
Color:
Black or others.
Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.
Lead Time：
Within 10-15 working days as soon as we
Weight：
3518 KG/KM

Inquiry now

Product Detail

VV₃₂ PVC Insulated SWA Armored PVC Sheathed Power Cables

MAIN KEYWORDS

VV₃₂, NYY-SWA, NAYY-SWA, CU/PVC/PVC/SWA/PVC power cable, BS 6346 SWA power cable.

APPLICATION CHARACTERISTICS

CU/PVC/PVC/SWA/PVC VV₃₂ power cable, copper conductor, PVC insulation, steel wire armored, PVC sheath, PVC inner sheath, U₀/U: 0.6/1kV. Multi-core PVC cable with steel wire armored (SWA). Power and auxiliary fixed wiring cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.

Generally speaking, steel wire armored cables have the characteristics of steel tape armored cables, and it can be laid vertically, but steel tape armored cables can only be laid horizontally.

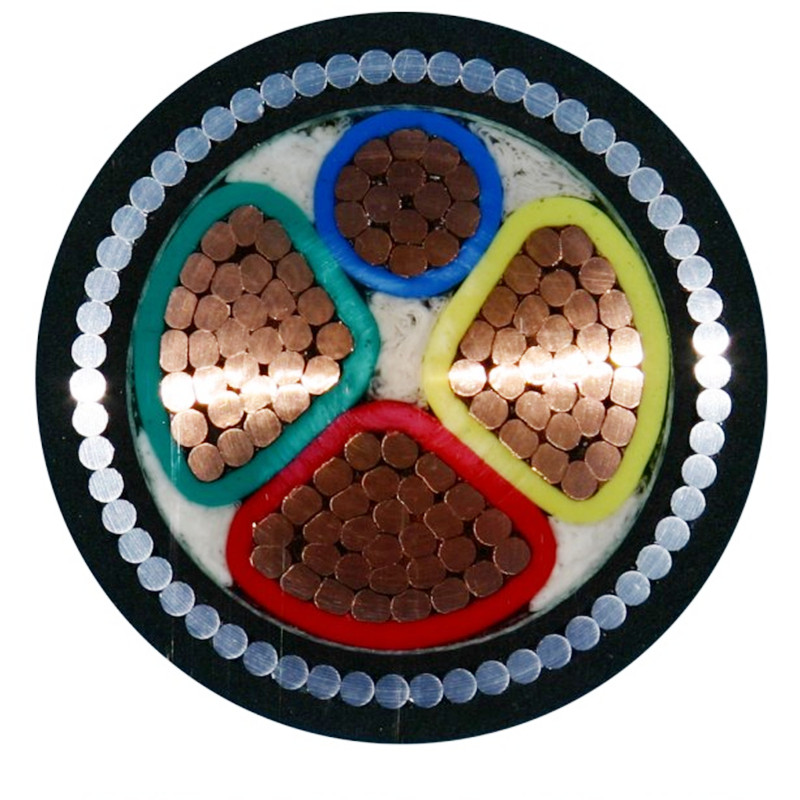

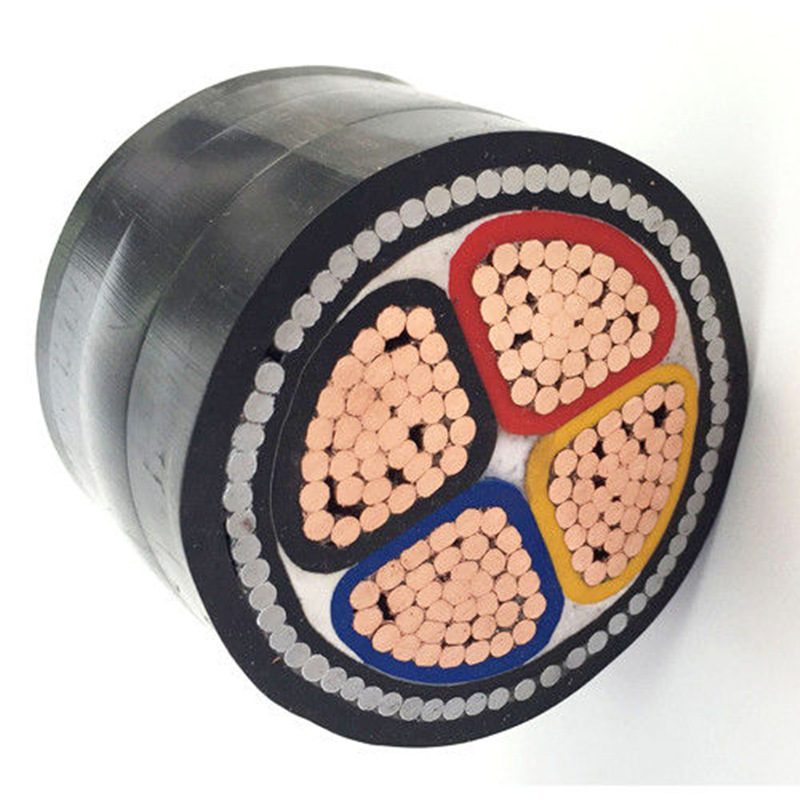

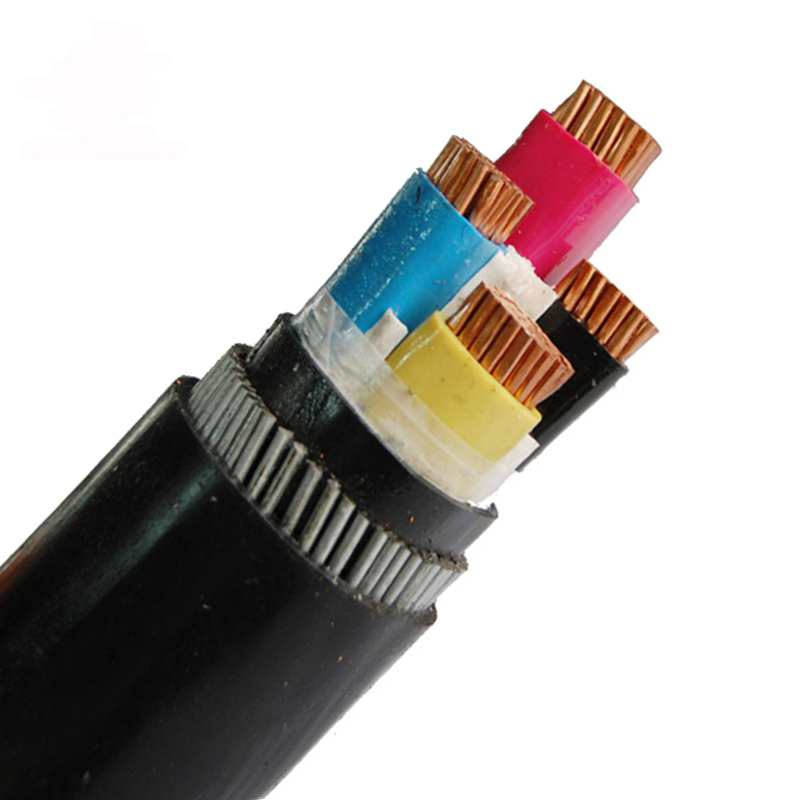

PRODUCTS STRUCTURE

---Conductor Material

Pure annealed copper wire, solid class 1, or strand class 2.

---Insulation Material (inner insulation)

PVC (polyvinyl chloride).

---Insulation Colour

2C: brown, blue

3C: brown, blue, yellow/green

4C: brown, blue, black, yellow/green,

5C: brown, blue, black, grey, yellow/green

Remark: we will choose other colors according to the customer request.

---Filler Material

Fiberglass tape, or PVC (Polyvinyl chloride).

---Cabling Material

Non-woven fabrics

---Inner Sheath Material

PVC (Polyvinyl chloride).

---Armoured Material

Single core: galvanized aluminum wire; multi-cores: galvanized steel wire.

---Sheath Material (out insulation)

PVC (polyvinyl chloride)

---Sheath Colour

Black, or others.

---Core Number

2～5 cores, 2C～5C.

---Voltage Rate (U₀/U)

0.6/1kV, 600/1000V (U_m: 1.2kV).

---Working Temperature

-15℃～+70℃.

---Minimum Bending Radius

Fixed: 20 x Out Diameter.

---Production Standard

GB/T 12706, IEC 60502, BS 6346.

---Products Delivery

Within 10-15 working days as soon as we received the deposit.

REMARK

---The above information is only for you reference, for the formal technical data, please refer to the actual cables.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 & 105 degree, but the production process and insulation materials maybe has a few of different.

---For the VV₃₂ power cable, according to the practice, the common specification is 25～300 mm².

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

RAW MATERIAL

PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?

Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?

For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?

It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?

Yes, could print your company name, we even custom the quality card to promote your company.

Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : VV32 PVC Insulated SWA Armoured PVC Sheathed Power Cables

Related Tags :

Categories

Hot Products

Related Products

NYY PVC Insulated PVC Sheathed VV Power Cables 0.6/1kV

NYY VV power cables, 0.6/1kV, CU/PVC/PVC, copper wire, PVC insulation, PVC sheath, meet to GB/T 12706, IEC 60502. The NYY VV power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.

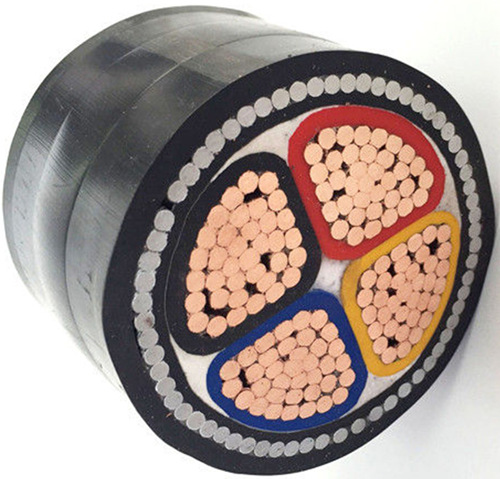

VV22 PVC Insulated STA Armoured PVC Sheathed Power Cables
