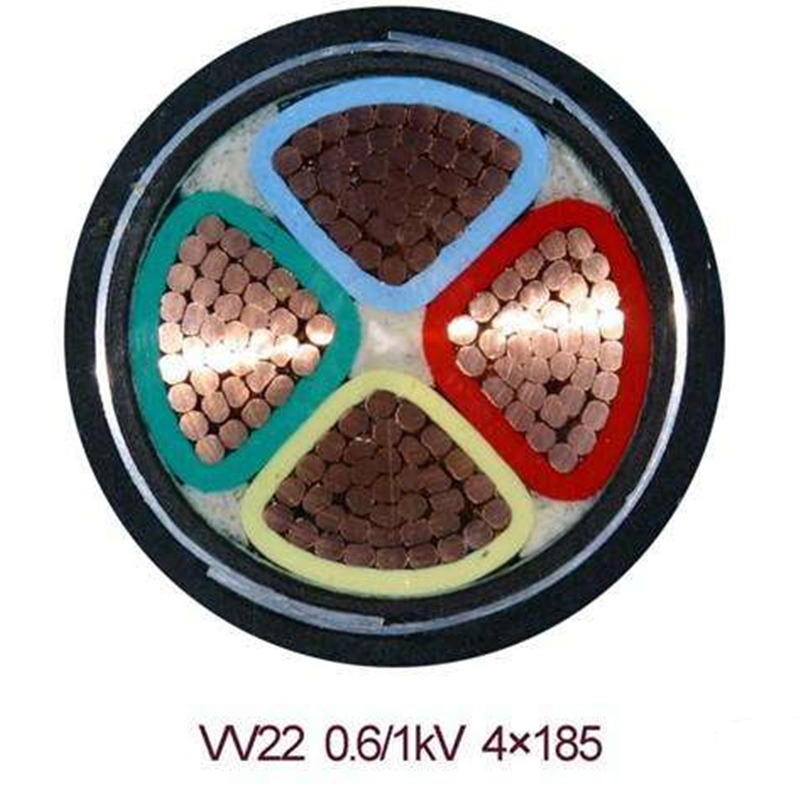

VV22 PVC Insulated STA Armoured PVC Sheathed Power Cables

VV₂₂ PVC Insulated STA Armoured PVC Sheathed Power Cables, 0.6/1kV, CU/PVC/STA/PVC, copper wire, PVC insulation, PVC innel sheath (is optioned), steel tape armoured, PVC sheath, meet to GB/T 12706, IEC 60502. The VV₂₂ power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.

Brand:
Hante，HANTE
Item NO.:
XTD-VV22-01
Order(MOQ):
100 meters
Payment:
T/T 30% the deposit, the balance will be paid
Market Price:
$/M 32.88
Price:
$28.88/20.88 per meter
Product Origin:
Hubei Province, China.
Color:
Black or others.
Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.
Lead Time：
Within 10-15 working days as soon as we
Weight：
1250 KG/KM

Inquiry now

Product Detail

VV22 PVC Insulated STA Armoured PVC Sheathed Power Cables

MAIN KEYWORDS

VV₂₂, NYY-STA, NAYY-STA, CU/PVC/STA/PVC power cable, PVC 0.6/1kV power cable.

APPLICATION CHARACTERISTICS

CU/PVC/STA/PVC VV22 power cable, U₀/U: 0.6/1kV (U_m: 1.2kV), copper conductor, PVC insulation, steel tape armored, PVC sheath, PVC inner sheath is optioned. For laying indoor, tunnel, channel and underground, able to bear external mechanical force. Power cables for fixed installations such as distribution networks or industrial installations. Such as plant engineering, industrial machinery, heating and air-conditioning systems, power stations, stage applications etc.

(1) Armored cables are generally fixed power cables, which are generally fixed in one place and do not move and the power lines transmit electric energy.

(2) In addition to the above purposes, the cable with armor layer can also enhance the tensile strength, compressive strength and other mechanical protection to extend the service life.

(3) Armored cable has a certain resistance to external forces, but also to prevent the rat bite, not through the armored caused power transmission problems, armored bending radius should be large, armored layer can be grounded to protect the cable.

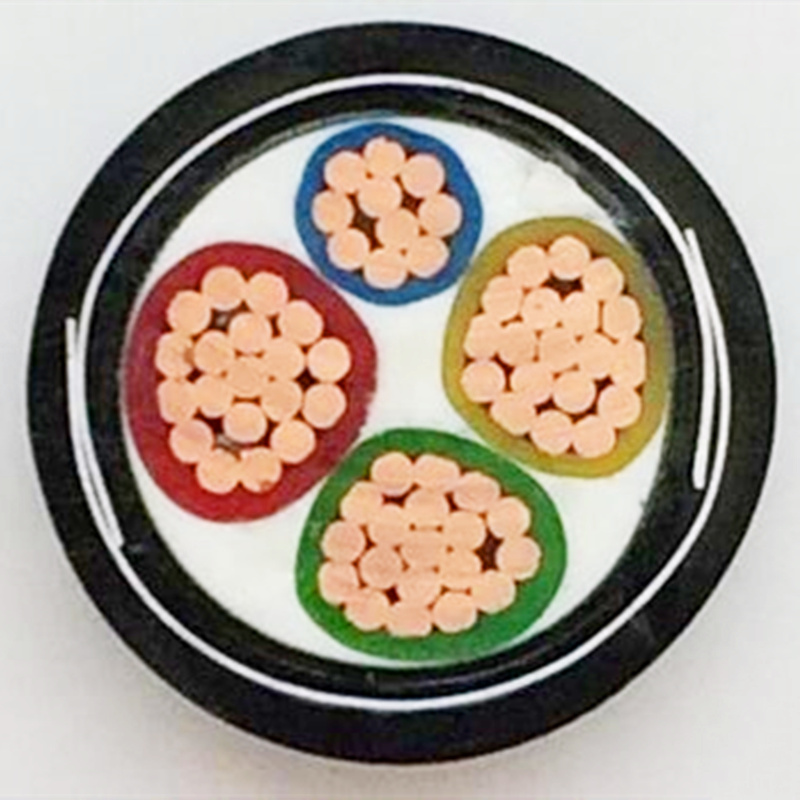

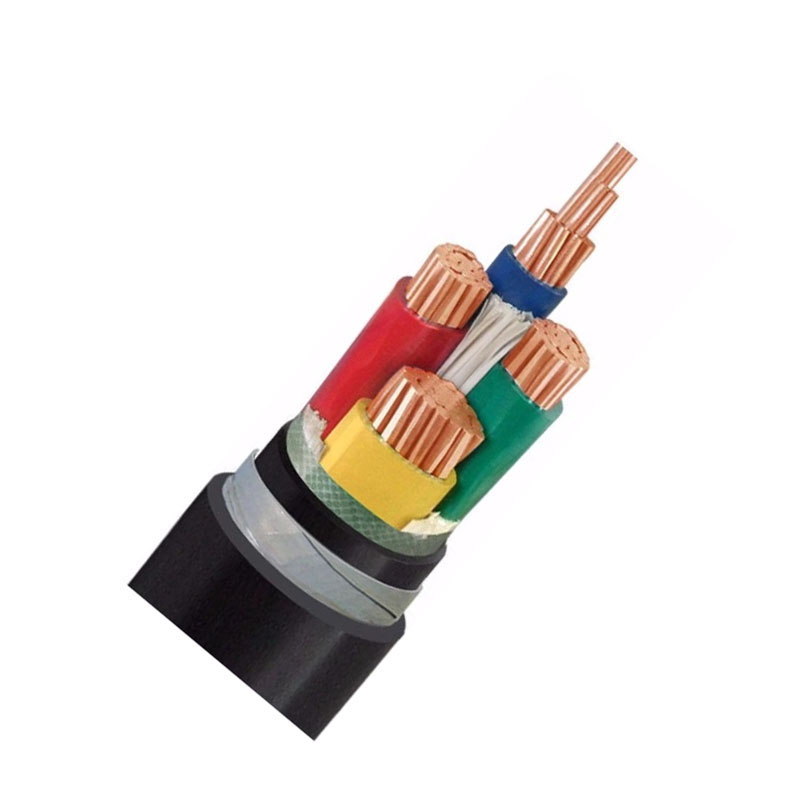

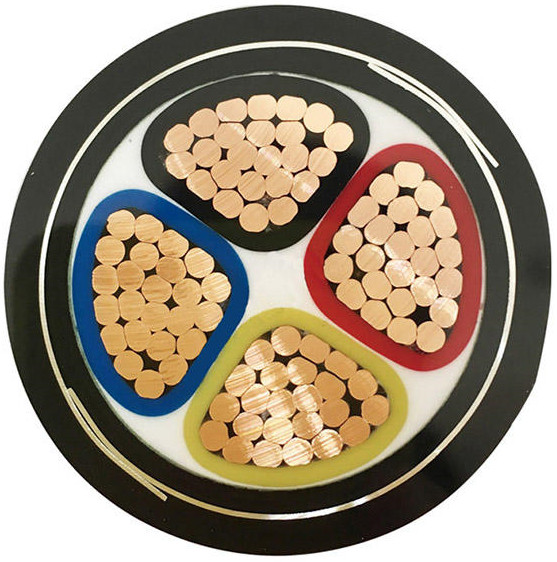

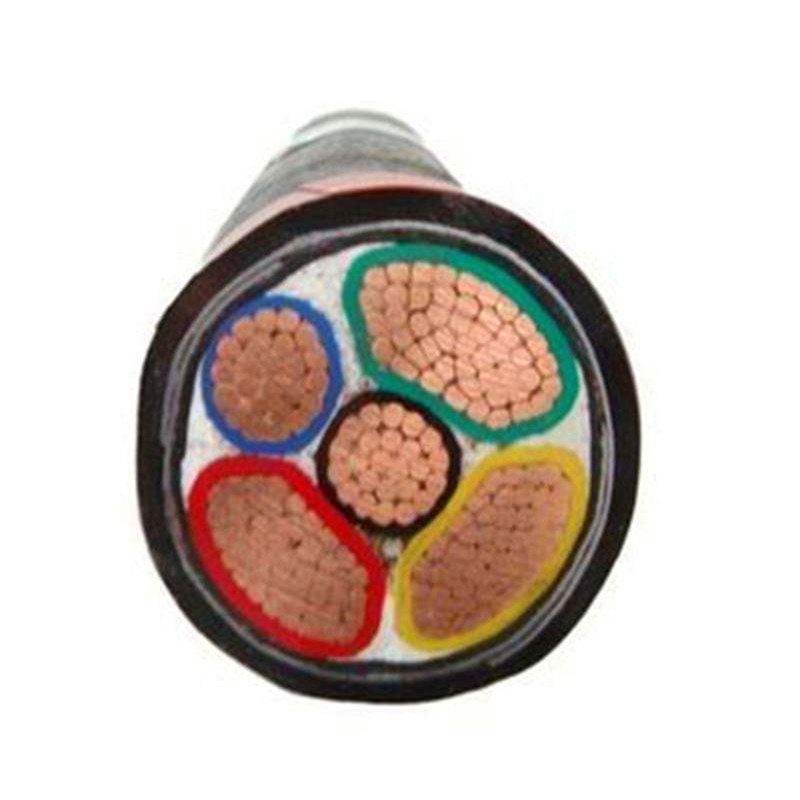

PRODUCTS STRUCTURE

---Conductor Material

Pure annealed copper wire, solid class 1, or strand class 2.

---Insulation Material (inner insulation)

PVC (polyvinyl chloride).

---Insulation Colour

2C: brown, blue

3C: brown, blue, yellow/green

4C: brown, blue, black, yellow/green,

5C: brown, blue, black, grey, yellow/green

Remark: we will choose other colors according to the customer request.

---Filler Material

Fiberglass tape, or PVC (Polyvinyl chloride).

---Cabling Material

Non-woven fabrics

---Armoured Material

Galvanized steel tape.

---Sheath Material (out insulation)

PVC (polyvinyl chloride)

---Sheath Colour

Black, or others.

---Core Number

2～5 cores, 2C～5C.

---Voltage Rate (U₀/U)

0.6/1kV, 600/1000V (U_m: 1.2kV).

---Working Temperature

-15℃～+70℃.

---Minimum Bending Radius

Fixed: 20 x Out Diameter.

---Production Standard

GB/T 12706, IEC 60502, BS EN/IEC60502, BS 7870, DIN VDE 0276.

---Products Delivery

Within 10-15 working days as soon as we received the deposit.

REMARK

---The above information is only for you reference, for the formal technical data, please refer to the actual cables.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 & 105 degree, but the production process and insulation materials maybe has a few of different.

---For the VV₂₂ power cable, according to the practice, the common specification is 25～300 mm².

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

RAW MATERIAL

PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?

Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?

For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?

It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?

Yes, could print your company name, we even custom the quality card to promote your company.
