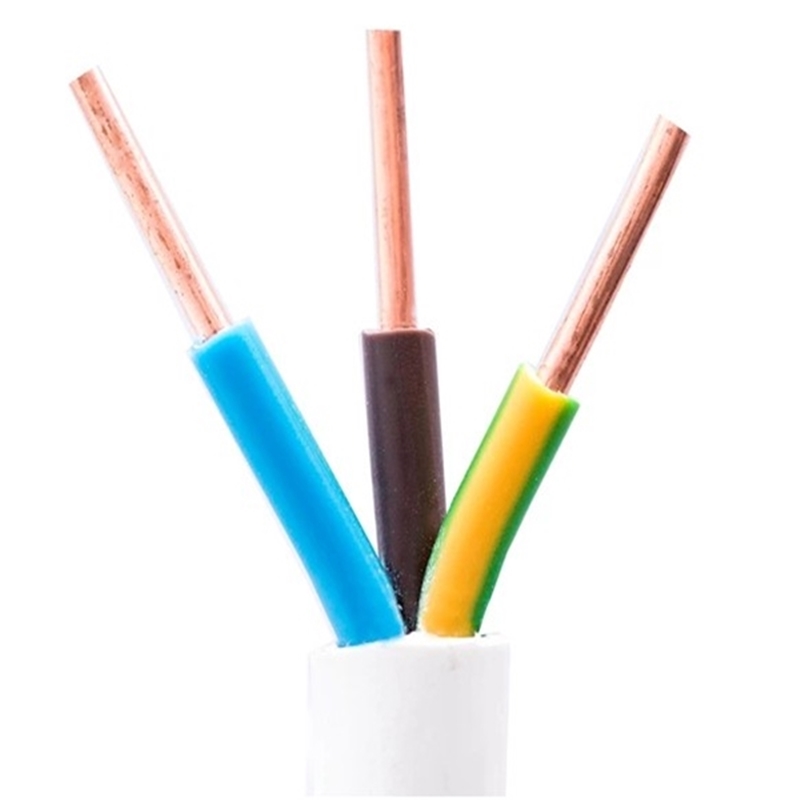

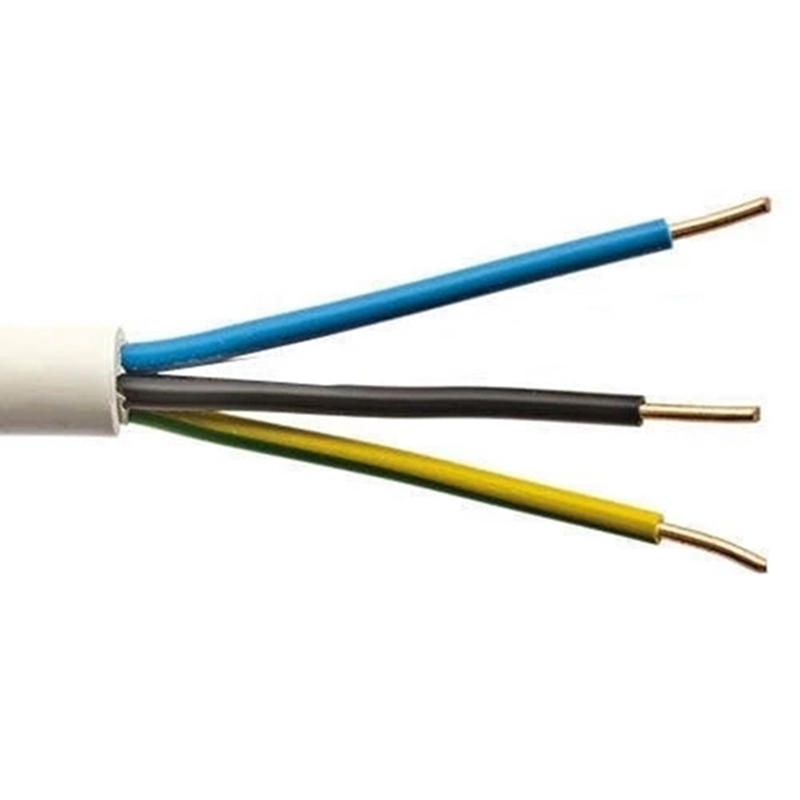

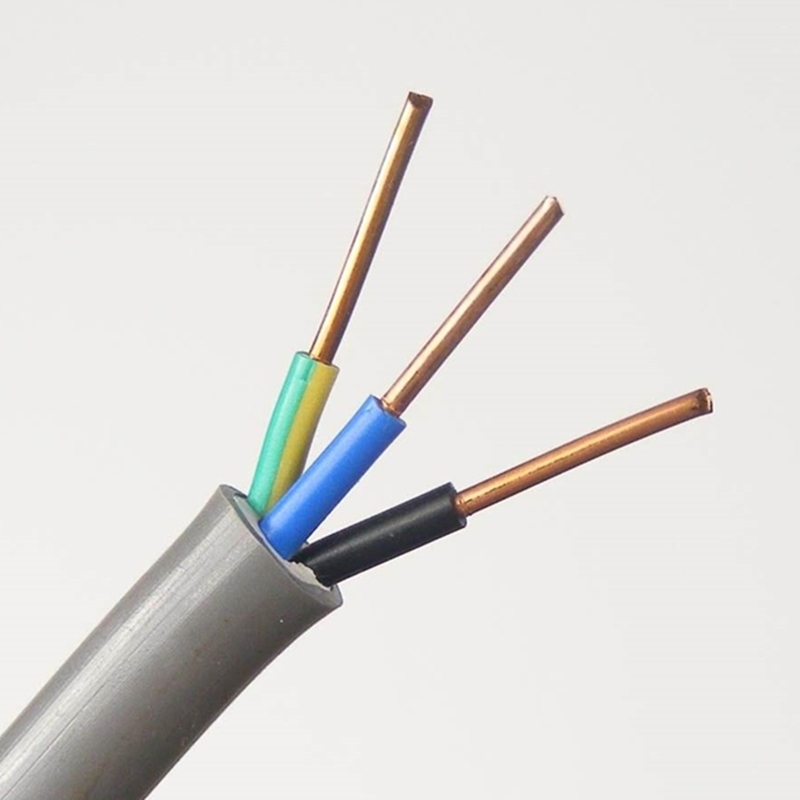

Multi-cores PVC Insulated PVC Sheathed BVV Electrical Wires

Multi-cores PVC Insulation and Sheath BVV NYM Electrical Cables

MAIN KEYWORDS

BVV, BVVR, NVV, NYM, NYM-J, NYM-O, H05VV-U, H05VV-R, H07VV-U, H07VV-R, SDI Insulated Cable, CU/PVC/PVC, 60227IEC 10 BVV.

APPLICATION AND CHARACTERISTICS

BVV multi-core cable is used to connect household appliances, indoor circuits, lighting, switch, sockets and small electric tools, etc. For the appearance, the multi-cores BVV cable is similar to VV power cable. But the thickness of insulation and sheath, the multi-cores BVV cable is thinner than VV power cable; for the voltage rate, the multi-cores BVV cable is lower than the VV power cable; about the production procession, the multi-core BVV cable is simple than VV power cable.

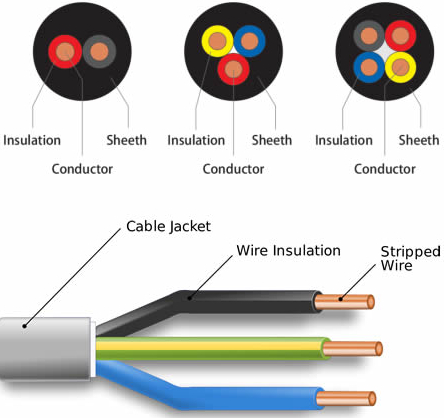

PRODUCTS STRUCTURE

---Conductor Material

   Plain annealed copper wire, class 1 solid, or class 2 strand.

---Insulation Material (inner insulation)

   PVC (polyvinyl chloride).

---Insulation Colour

   2C: brown, blue

   3C: brown, blue, yellow/green

   4C: brown, blue, black, yellow/green,

   5C: brown, blue, black, grey, yellow/green

   Remark: we will choose other colors according to the customer request.

---Sheath Material (out insulation)

   PVC (polyvinyl chloride)

---Sheath Colour

    Black, white, orange, or others.

---Core Number

   2 cores, 2C; 3 cores, 3C; 4 cores, 4C; 5 cores, 5C.

---Voltage Rate (U₀/U)

   300/500V.

---Working Temperature

   -15℃～+70℃.

---Minimum Bending Radius

   Fixed: 6 x Out Diameter.

---Production Standard

   JB/T 8734, GB/T 5023, IEC 60227, BS 6500, TIS 11 part 4-2553.

---Products Delivery

   Within 5-7 working days as soon as we received the deposit.

REMARK

---The above specification is only for you reference, the formal technical data, please refer and check the actual cables.

---The above cable maybe has the inner sheath, and the material of inner sheath is PVC.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 or 105 degree, but the production process, materials and production standard maybe has a few of different.

---For the BVV multi-core BVV cable, according to the practice, the common specification is 1.5～6 mm2.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-Create Xintiandi; Focus on Quality, Foremost Service.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

RAW MATERIAL

PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
