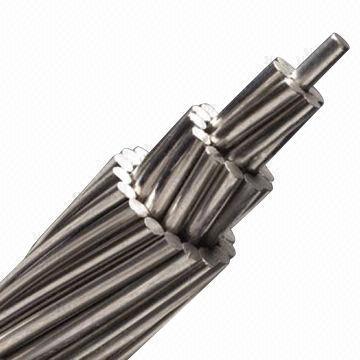

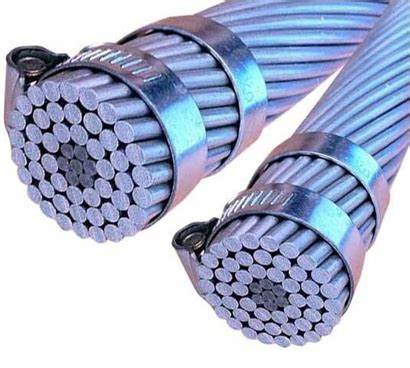

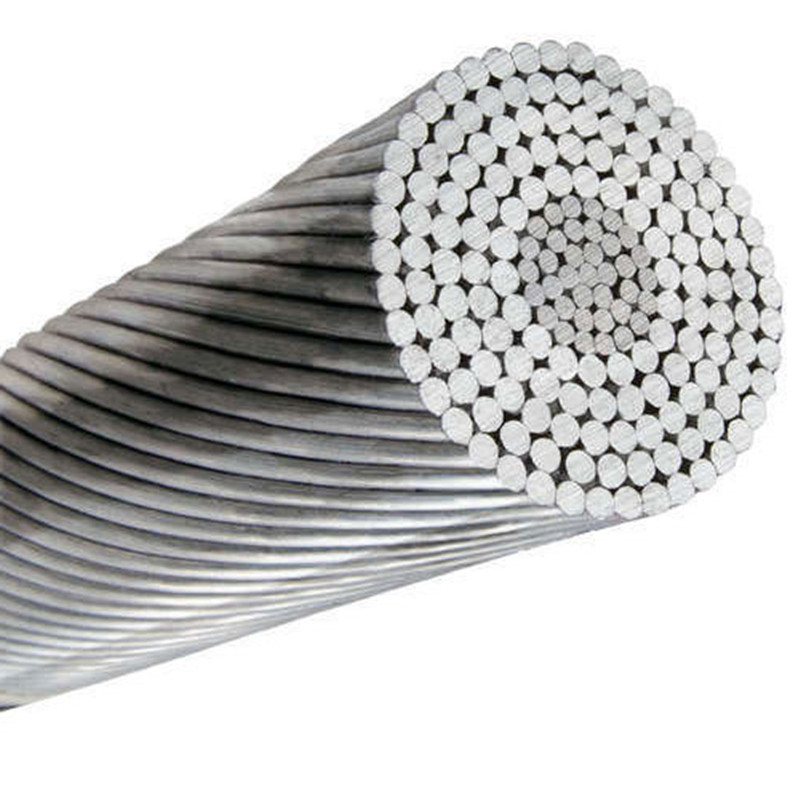

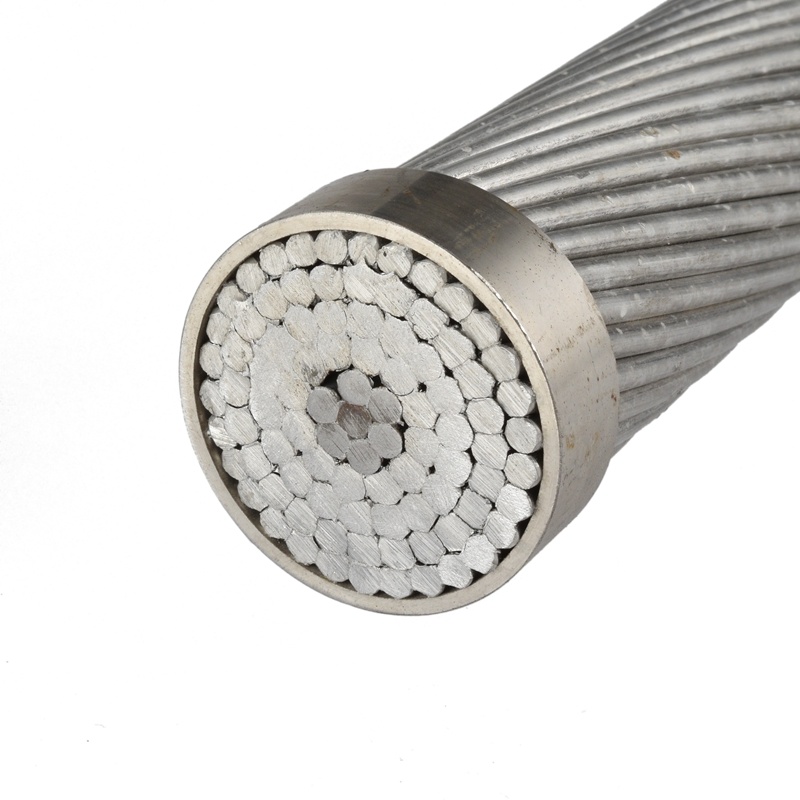

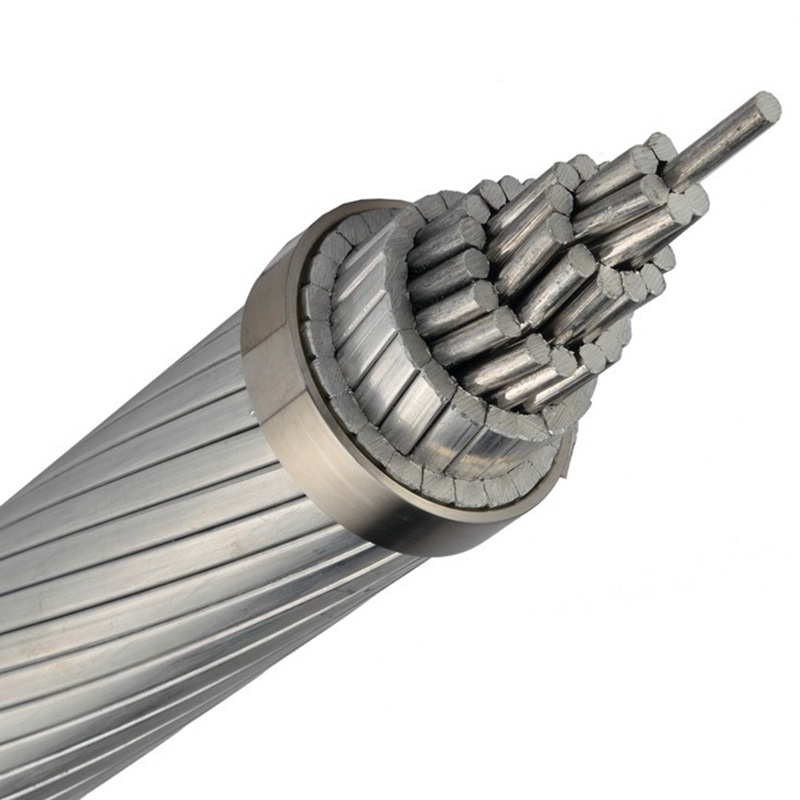

Aluminum Conductor Steel Reinforced ACSR cable

Aluminum Conductor Steel Reinforced ACSR cable

PRODUCTS KEYWORDS

ACSR cable, acsr bare conductor, aluminum conductor steel reinforced cable, acsr aerial cable.

PRODUCTION APPLICATION

Hante brand Aluminum Conductor Steel Reinforced ACSR cable, ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminium. ACSR conductor is available in a range of steel strengths varying from 6% up to 40%. The higher strength ACSR conductors are used for river crossings, overhead earth wires, and installations involving extra long spans. Against any given resistance of conductor, ACSR conductor may be manufactured to have different tensile strengths as per requirement. The principal advantage of these
conductors are their high tensile strength and light weight, covering longer spans with less supports. Due to the greater diameter of an ACSR conductor much higher corona limit can be obtained, giving a big advantage on high and extra high voltage overhead lines.

PRODUCTION FEATURES

Aluminum Conductor Steel Reinforced ACSR cable, which is suitable for overhead transmission lines. Inside it is a steel "core", and outside it is wound around the steel core by means of aluminum wires. Steel core mainly plays the role of increasing strength, aluminum wire mainly plays the role of transmitting electric energy.

Aluminum Conductor Steel Reinforced ACSR cable, has the characteristics of simple structure, easy erection and maintenance, low line cost, large transmission capacity, and is conducive to crossing rivers and valleys and other special geographical conditions of the laying, with good electrical conductivity and enough mechanical strength, tensile strength, tower rod distance can be enlarged. Therefore, it is widely used in the overhead transmission and distribution lines of various voltage levels.

PRODUCTS STRUCTURE

---Conductor Material

   Aluminium alloy conductor.

---Insulation Material

   Non-insulation

---Sheath Material

   Non-sheath

---Core Number

    Single core, 1C.

---Working Temperature

   -0℃～+70℃.

---Installation Temperature

    0℃ ～+40℃

---Minimum Bending Radius

    20 x Overall Diameter.

---Production Standard

    GB/T 1179-2008, GB/T 14049-2008, IEC 61089, BS 215, ASTM B-231, ASTM B-232.

---Product Packing

    Wooden drum.

---Product MOQ

   10000 meters.

---Production Delivery

   Within 10-20 working days as soon as we received the deposit.

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of publication.

---When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

RAW MATERIAL

PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
