BS 5308 Part 1 Type 1 Fire Resistant Cable

BS 5308 Part 1 Type 1 Fire Resistant Cable, plain annealed copper wire conductor, XLPE insulation, MICA tape fire resistant material, AL or PET shield screen, tinned copper drain wire, LSZH compound sheath, 300/500V, BS 5308 part 1 type 1.

Brand:
Hante，HANTE
Item NO.:
XTD-LSZH-06
Order(MOQ):
3000 meters
Payment:
T/T 30% the deposit, the balance will be paid
Market Price:
$/M 8.26
Price:
$7.88/8.00 per meter
Product Origin:
Hubei Province, China.
Color:
Black red blue orange or others.
Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.
Lead Time：
Within 7-10 working days as soon as we
Weight：
188 KG/KM

Inquiry now

Product Detail

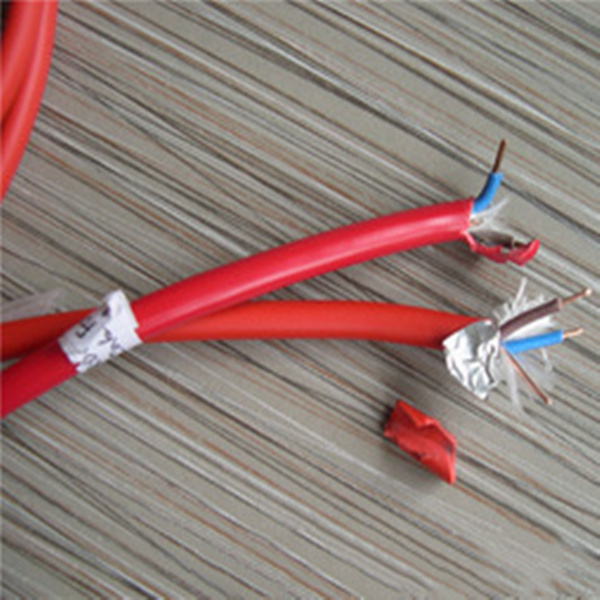

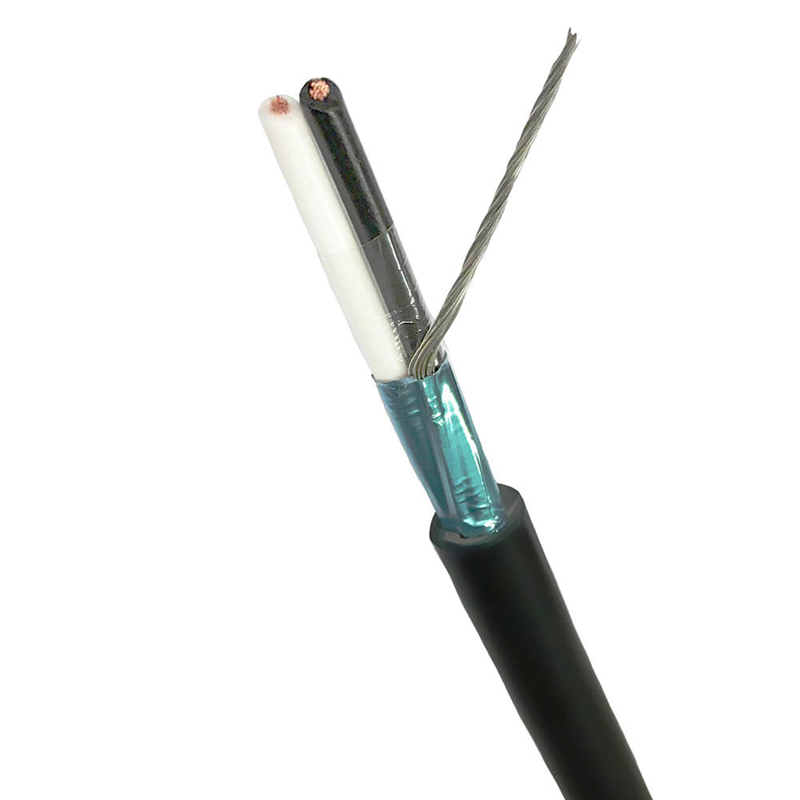

BS 5308 Part 1 Type 1 Fire Resistant Cable

MAIN KEYWORDS

BS 5308 part 1 electric cable, MICA tape fire resistant cable, xlpe insulated electrical cable, CAM fire resistant cable, LSZH electric cable, MICA/XLPE/CAM/LSZH Fire Resistant Cable .

PRODUCTS APPLICATION

Hante^@ brand BS 5308 Part 1 Type 1 Fire Resistant Cable, BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry. The signals can be of analogue, data or voice types and from a variety of transducers such as pressure, proximity or microphone. Part 1 Type 1 cables are generally designed for indoor use and in environments where mechanical protection is not required. Suitable for fire resistant installations.

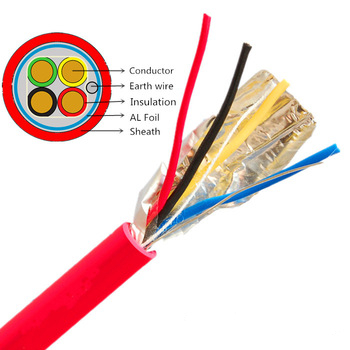

PRODUCTS STRUCTURE

---Conductor Material

Plain annealed copper wire, meet to IEC 60228.

---Fire Resistant Material

MICA tape

---Insulated Material

XLPE (cross-linked polyethylene)

---Insulated Color

1 core: natural color

2 cores: blue, brown & bare earth.

3 cores: brown, black, grey & bare earth.

4 cores: blue, brown, black, grey.

---Shielded / Screened Material

Al/PET (Aluminium/Polyester Tape)

---Drain Wire Material

Tinned copper wire

---Sheath Material

LSZH (low smoke zero halogen)

---Sheath Color

Black, red, blue, orange, or others.

---Voltage Rate

300/500V

---Operating Temperature

Fixed: -40ºC to +80ºC

Flexed: 0ºC to +50ºC

---Minimum Bending Radius

6 x overall diameter

---Production Standard

BS 5308 part 1 type 1, IEC 60331, UL 94 CAM class.

---Production Delivery

Within 7-10 working days as soon as we received the 30% deposit before the shipment.

---Packing Type

100 meters per roll, plastic reel, plywood drum, wooden pallet, wooden drum or others.

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability.

---All the information is provided in good faith and is believed to be correct at the time of publication; when selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

---Hante Cable: it is your Production Base, Overseas Warehouse, Purchase Consultant in wire and cable industry.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

RAW MATERIAL

PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?

Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?

For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?

It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?

Yes, could print your company name, we even custom the quality card to promote your company.
