1kV single core JKLV aluminum conductor PVC insulated Aerial Cables

1kV single core JKLV aluminum conductor PVC insulated Aerial Cables

PRODUCTS KEYWORDS

JKLV cable, ABC cable, PVC insulated aerial cable; aluminum conductor PVC insulated aerial cable.

APPLICATION CHARACTERISTICS

1kV single core JKLV aluminum conductor PVC Insulated Aerial Bundled Cable, it applies to electrical overhead power transmission and distribution lines with AC rated voltage U0/U up to and including 1kV.

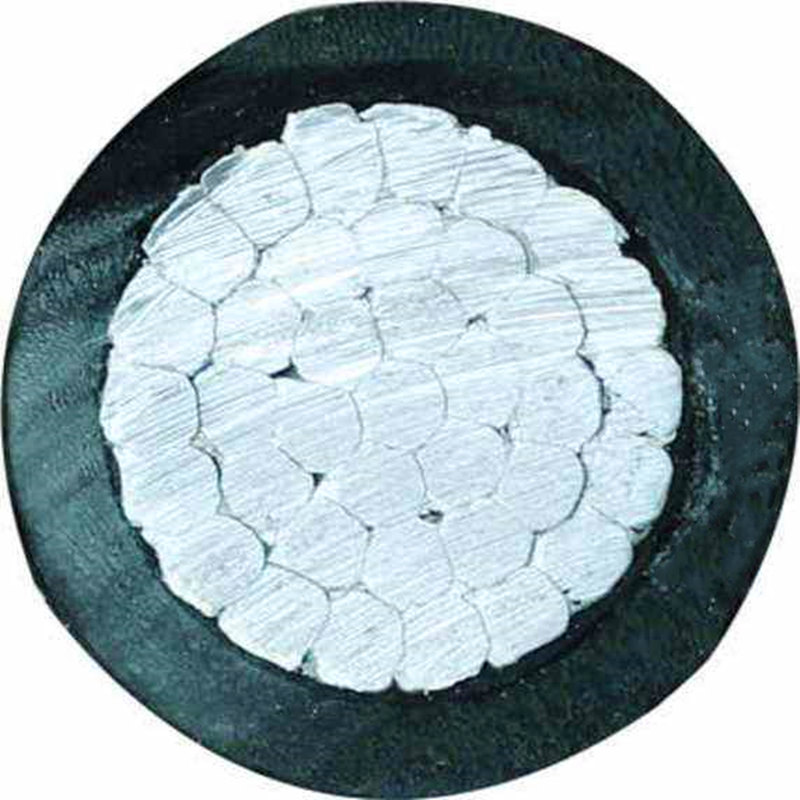

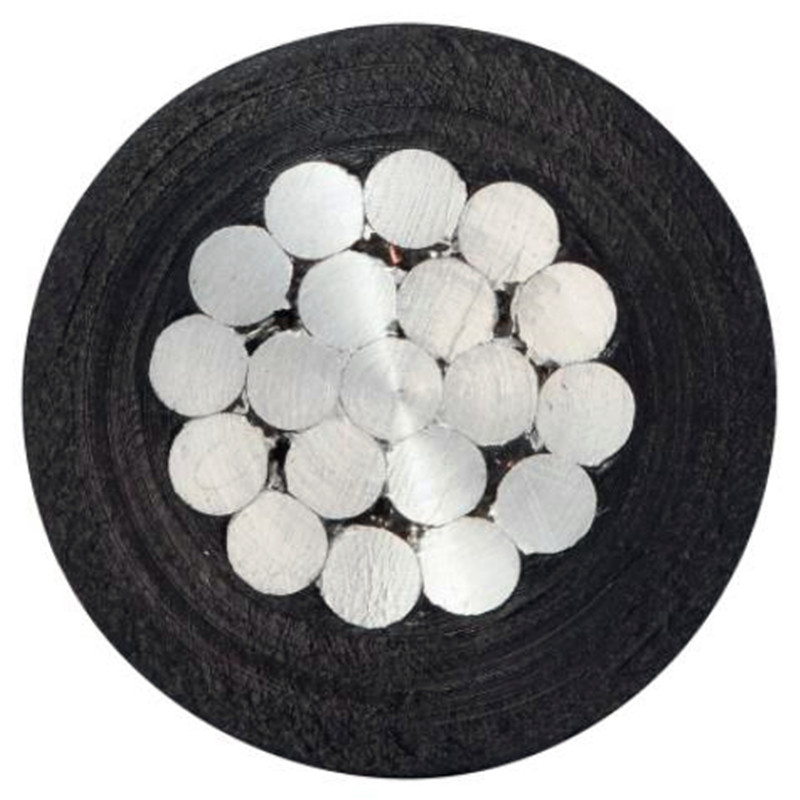

PRODUCTS STRUCTURE

---Conductor Material

   Plain annealed aluminum wire, strand, class 2.

---Insulation Material

   PVC (Polyvinyl chloride)

---Insulation Color

   Black, or other colors.

---Sheath Material

   Non-Sheath

---Core Number

    Single core, 1C.

---Voltage Rate (U₀/U)

    1kV.

---Working Temperature

   -15℃～+70℃.

---Minimum Bending Radius

    6 x Overall Diameter.

---Production Standard

    GB/T 12527-2008, GB/T1179-2008, IEC 60502

---Product Packing

    Wooden drum, or others.

---Product MOQ

   10000 meters.

---Production Delivery

   Within 7-10 working days as soon as we received the deposit.

PRODUCTS SPECIFICATION

REMARK

---The above information is only for you reference, the formal data, please refer the actual product testing.

---Highest working temperature of cable in case of short circuit, the longest lasting time is not over 5 seconds: PVC insulated ≤160℃, XLPE insulation ≤250℃.

---When the cable is applied to a dc system, the rated voltage of the system shall not be greater than 1.5 times the cable rating; the operating voltage of the system shall not be greater than 1.1 times the rated voltage of the system.

---The product can have flame retardant and fire-resistant properties, the working temperature can be 90 degree, but the production process, materials and production standard maybe has a few of different.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

RAW MATERIAL

PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
