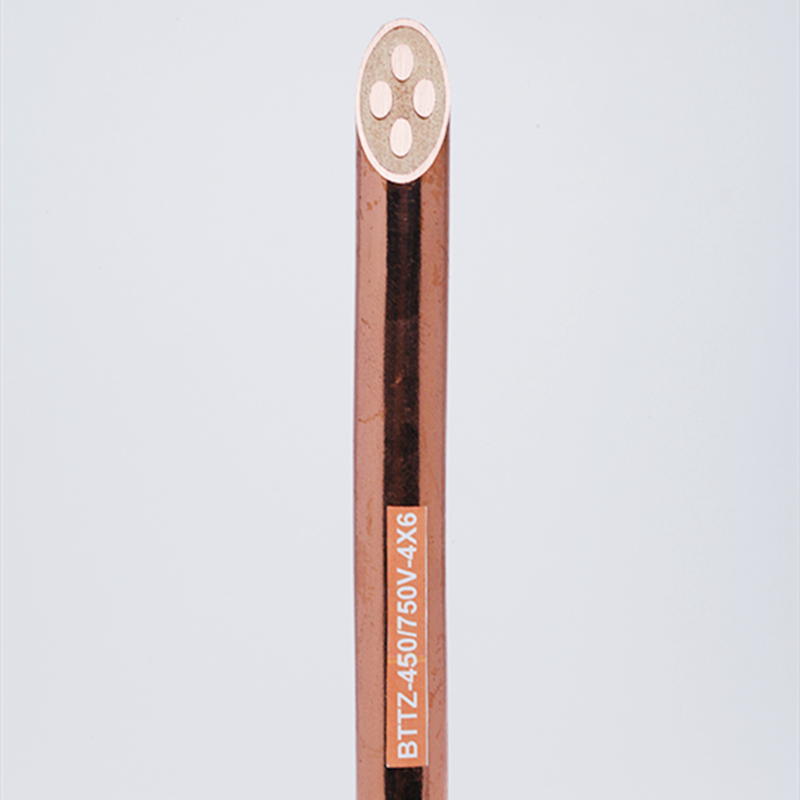

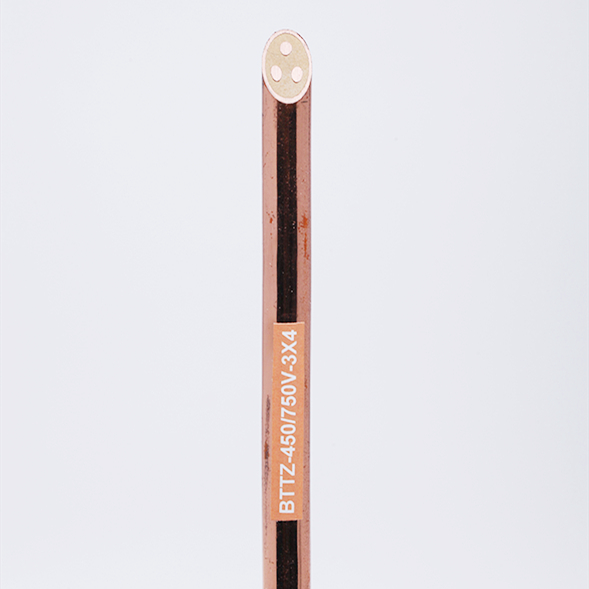

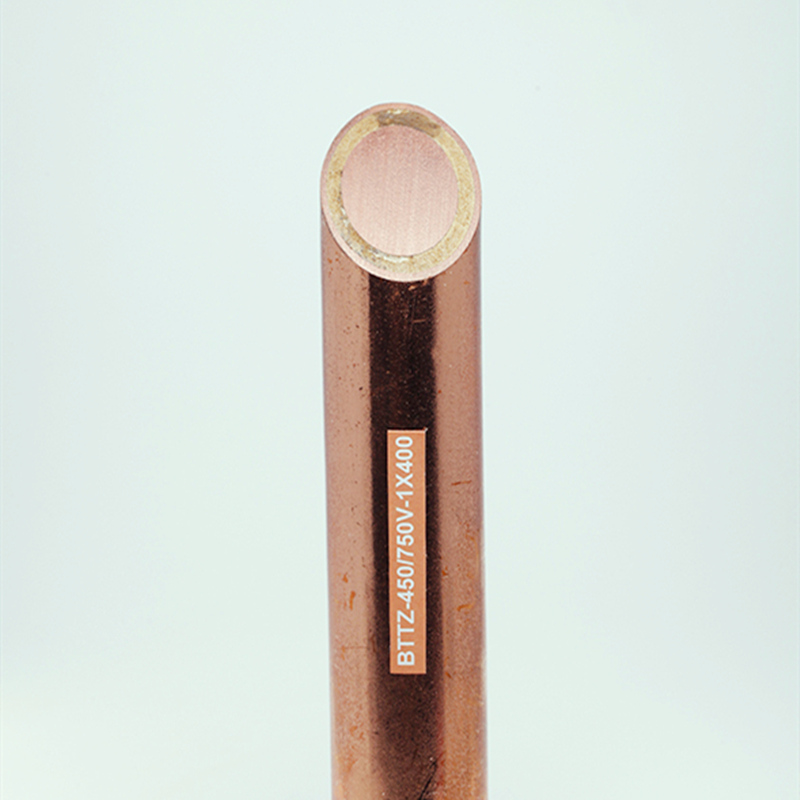

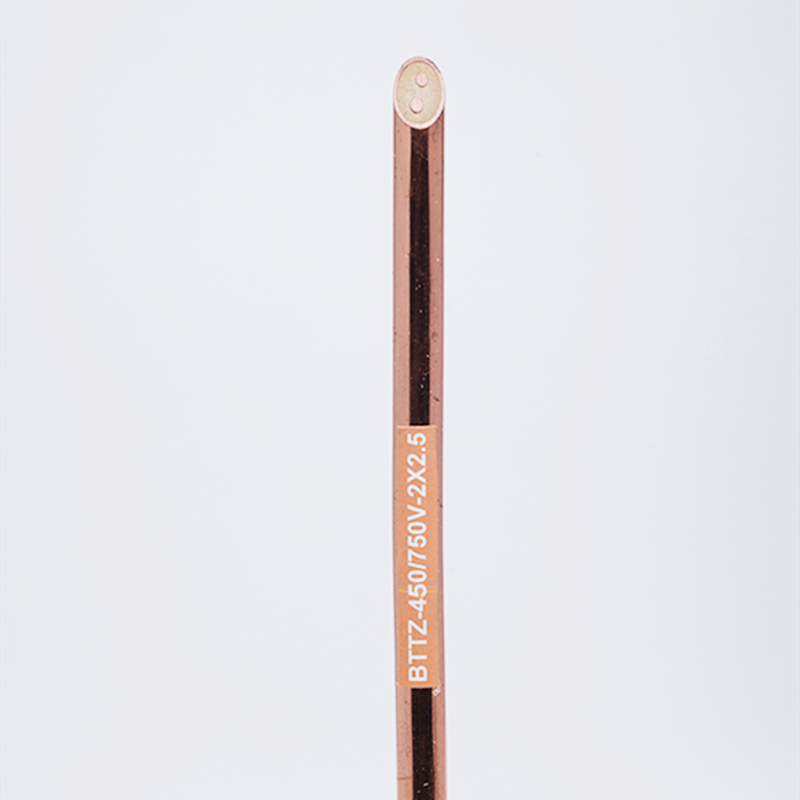

BTTZ BTTQ mineral insulated Power Cables

BTTZ & BTTQ mineral insulated cable is composed of copper conductor, magnesium oxide insulation, and seamless copper tube protective sheath, PVC or PE or LSZH out sheath is optioned. It has strong fire resistance characteristics, and can be widely used in various fields. 500V or 750V, meet to GB/T 13033, IEC 60702, BS 6387, BS 5266.

Brand:
Hante，HANTE
Item NO.:
XTD-MIC-01
Order(MOQ):
200 meters
Payment:
T/T 30% the deposit, the balance will be paid
Market Price:
$/M 66.88
Price:
$66/66.80 per meter
Product Origin:
Hubei Province, China.
Color:
Orange red or others.
Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.
Lead Time：
Within 15-20 working days as soon as we
Weight：
3850 KG/KM

Inquiry now

Product Detail

BTTZ BTTQ mineral insulated Power Cables

MAIN KEYWORDS

BTTZ mineral insulated cable, BTTQ mineral insulated cable, bare mineral 500V cable, bare mineral insulated 750V cable, MIC fire resistant cable, BS 6387 mineral insulated cable, GB/T 13033 mineral insulated cable, IEC 60702 mineral insulated cable, BTTYZ electric cable, BTTVQ mineral insulated cable.

PRODUCTS CHARACTERISTICS

(1) Completely fireproof. It does not burn itself, nor will it cause fire, and the flame will not produce toxic smoke and gas when it burns.

(2) Strong overload protection. The BTTZ mineral insulated cable will not be damaged, if it exceeds the current rating as long as its heat does not reach the melting temperature of copper (1083℃).

(3) Resistance to high temperature. The highest operating temperature of BTTZ mineral insulated cable can reach 250℃ in normal time, because the melting temperature of magnesium oxide is 2800℃, and the melting temperature of copper is 1083℃.

(4) Moisture-proof, anti-corrosive, explosion-proof. BTTZ mineral insulated cables have seamless copper tubing and sealed cable terminals, it can effectively block most oil, water, gas and flame.

(5) Long service life. Magnesium oxide and copper can withstand aging; the service life of common cable can reach more than 3 times.

(6) Environmental protection. Even if the BTTZ mineral insulated has been put into the flam, and the temperature of the flam close to the melting point of copper, it would not produce smoke, halogens or toxic gases.

(7) Radiation resistance, anti-electromagnetic interference. After irradiation, the resistance value of conductor and insulation will not change. It has a seamless and sealed copper sheath, making it one of the best shielding materials for use in nuclear facilities, computer rooms, power distribution and control rooms and other important applications.

(8) Small in size and light in weight. Compared with ordinary cables, BTTZ mineral insulated cable has a 60% reduction in volume and a 30% reduction in weight.

(9) Good grounding performance, copper sheath can provide good grounding performance, do not need a separate earth wire.

(10) BTTZ mineral insulated cable has some defects, such as high hardness, cannot water, joints, expensive

accessories, etc.

PRODUCTS APPLICATION

(1) Fire protection systems for all types of buildings.

(2) High-rise civil buildings, office buildings, hotels, shopping malls, exhibition centers, museums, libraries, hospitals, stadiums, airports and so on.

(3) High temperature field, such as steel, smelting, glass and other workshops.

(4) Flammable and explosive fields, such as petroleum, chemical, pharmaceutical, nuclear and military enterprises.

(5) National defense engineering, such as ship, aviation, aerospace, satellite launch, control center, etc.

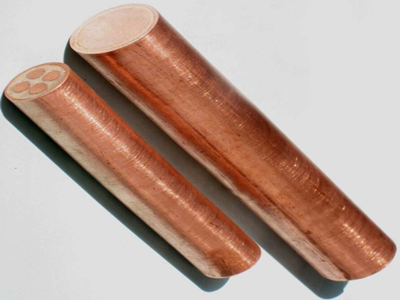

PRODUCTS STRUCTURE

---Conductor Material

Plain annealed solid copper wire.

---Insulation Material

Magnesium oxide mineral compound

---Sheath Material

Plain copper tube

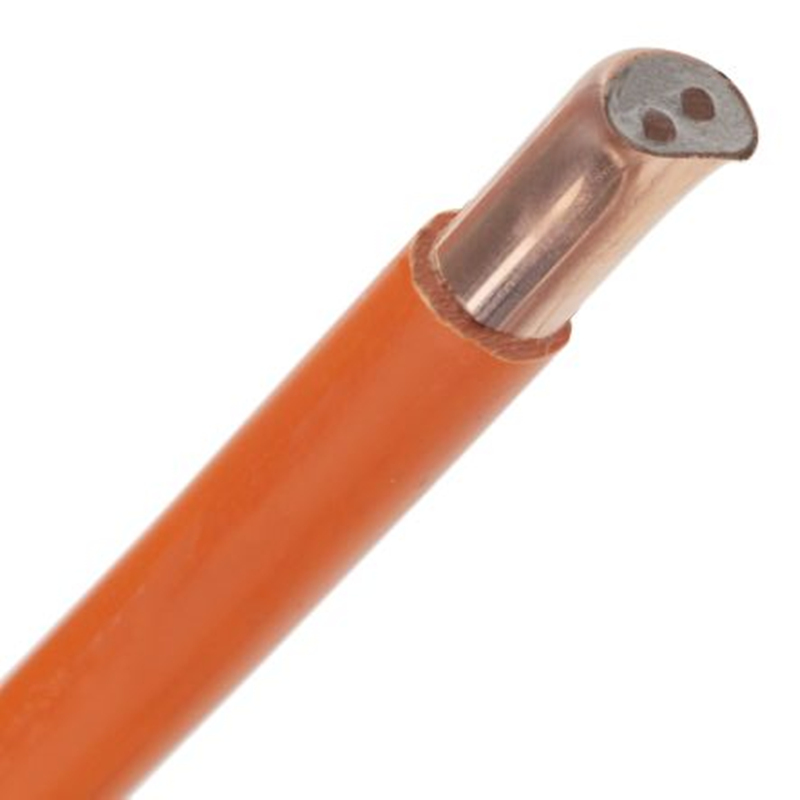

---Out Sheath (optional)

PVC, PE, or LSZH (low smoking zero halogen).

---Core Number

1C, 2C, 3C, 4C, 7C

---Voltage Rate

500V, 750V

---Working Temperature

Normal: -15℃～+250℃, special period: 1083℃

---Minimum Bending Radius

20 x Out Diameter

---Production Standard

GB/T 13033, IEC 60702, BS 6387, BS 6207, BS 5266, VDE 0284, AS 3188

---Products Delivery

Within 15-20 working days as soon as we received the deposit.

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability.

---All the information is provided in good faith and is believed to be correct at the time of publication; when selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.

---BTTZ or BTTQ Mineral insulated cable is composed of copper conductor, magnesium oxide insulation, and seamless copper tube protective sheath. It has strong fire resistance and can be widely used in various fields.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

RAW MATERIAL

PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?

Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?

For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?

It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?

Yes, could print your company name, we even custom the quality card to promote your company.

Send A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : BTTZ BTTQ mineral insulated Power Cables

Related Tags :

Categories

Hot Products

Related Products

YTTW YTTWY Mineral Insulated Fire Resistant Cables

YTTW, YTTWY mineral insulated cable, 0.6/1kV, plain annealed copper wire, Inorganic mineral insulated compound, rolled copper tube sheath, meet to JG/T 313-2014, GB/T 34926-2017, BS 6387.

NG-A BTLY Mineral Insulated Fire Resistant Cables

NG-A BTLY Mineral Insulated Fire Resistant Cables, 0.6/1kV, plain annealed strand copper wire, Inorganic mineral insulated compound, rolled copper tube sheath, meet to BS 6387, IEC 60702, JG/T 313-2014, GB/T 34926-2017.

BBTRZ Mineral Insulated Fire Resistant Cables

BBTRZ Mineral Insulated Fire Resistant Cables, 0.6/1kV, plain annealed strand copper wire, Inorganic mineral insulated compound (with MICA tape), XLPE isolated layer, mineral fire protection layer, LSZH compound sheath, meet to BS 6387, IEC 60702, JG/T 313-2014, GB/T 34926-2017.

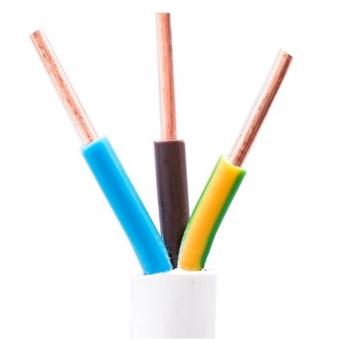

Multi-cores PVC Insulated PVC Sheathed BVV Electrical Wires
