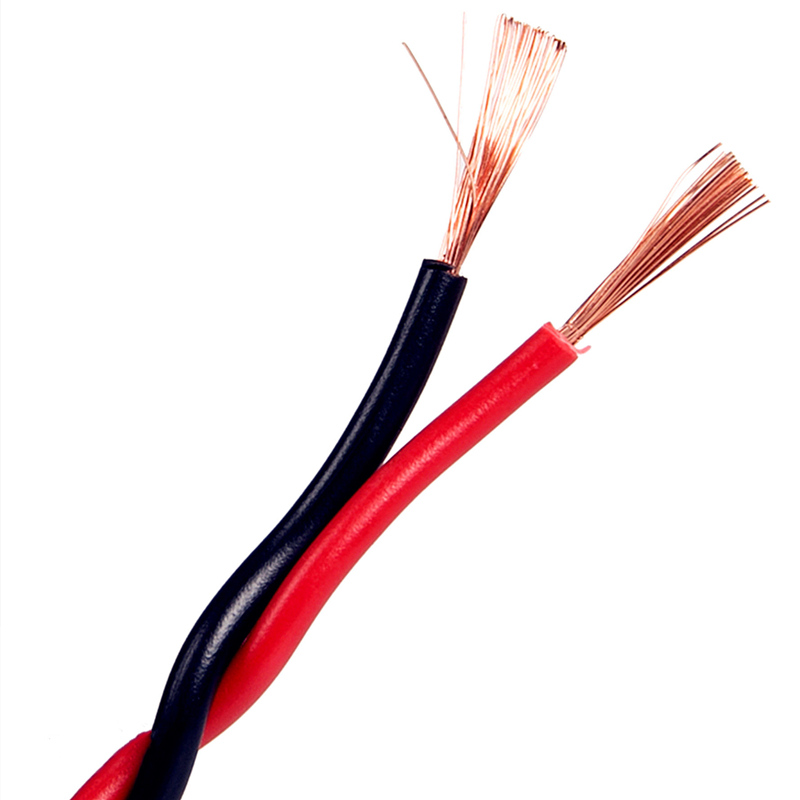

Twisted Flexible RVS PVC Insulated Electrical Wires

Twisted Flexible RVS Electrical Wires and Cables

MAIN KEYWORDS

RVS, flexible twisted cable, twisted flexible wire, H03V-S, H05V-S, PVC insulated stranded flexible wire.

APPLICATION SELLING-POINT

Flexible twisted RVS cable, the cable is suitable to be fixed wiring of power device, power lighting of home electric equipment and instrument, inner wiring of electric equipment, instrument, electronic equipment, automatic device, etc. Flexible twisted RVS cable is simply understood that the 2 pieces RVS cable has been twisted together. It very flexible for easy bending, high temperature resistance, low temperature resistance, flame retardant and high electrical conductivity, also fire resistance, UV resistance or RoHS compliant can be available as per the customer requirement.

PRODUCTS STRUCTURE

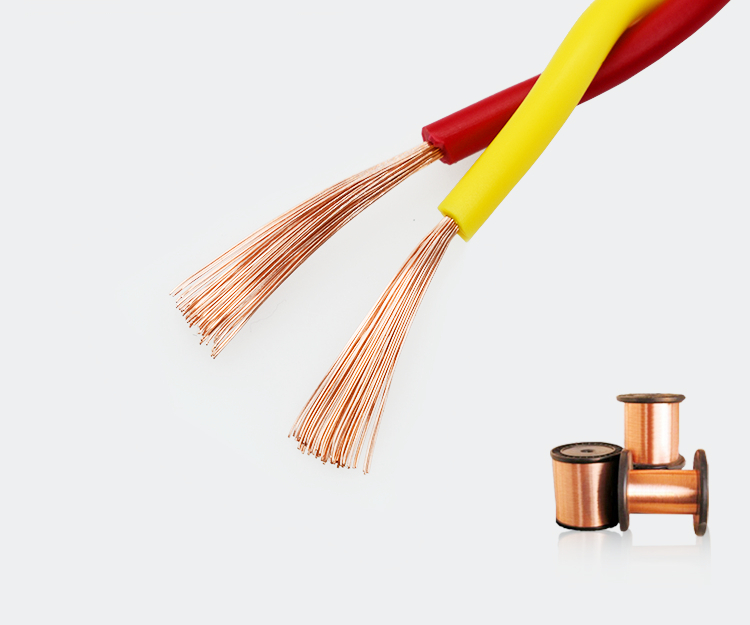

---Conductor Material

   Plain annealed copper wire, strand class 5, flexible.

---Insulation Material

   PVC (Polyvinyl chloride).

---Insulation Colour

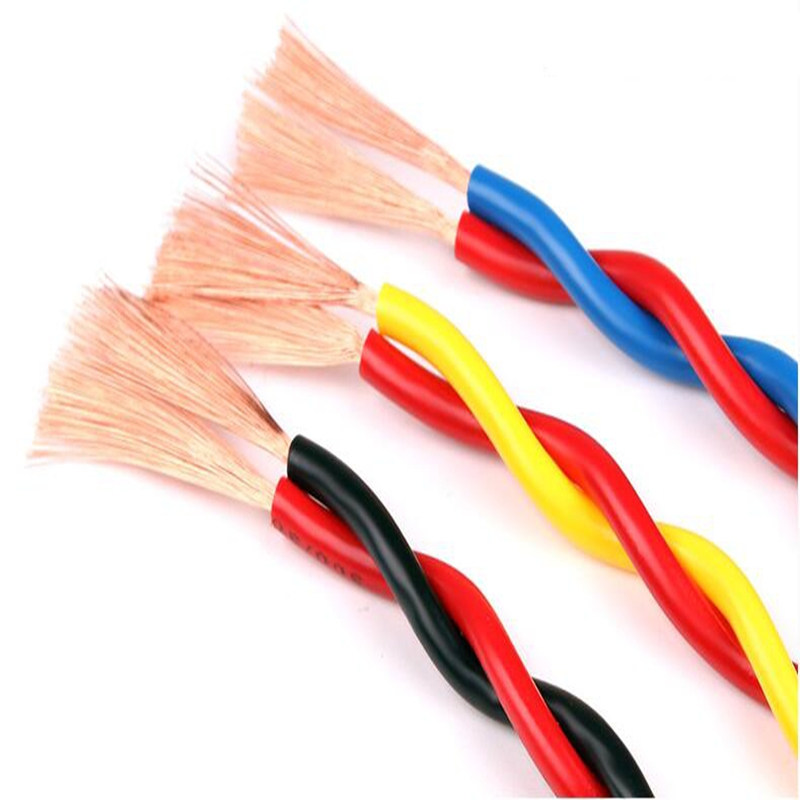

   Red & black, red & yellow, red & blue, red & green, or others.

---Sheath Material

   Non-Sheath

---Core Number

   2 cores, 2C.

---Voltage Rate (U₀/U)

   300/300V

---Working Temperature

   -15℃～+70℃.

---Minimum Bending Radius

   Fixed: 6 x Out Diameter.

---Production Standard

   JB/T8734, GB/T5023, IEC60227.

---Products Delivery

   Within 3-5 working days as soon as we received the deposit.

REMARK

---The above information is only for you reference, for accurate data, please refer to the actual products.

---Please do not install in direct contact with polystyrene or polyurethane insulation materials.

---The above all information is only for you reference, please refer to the actual goods.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 & 105 degree, but the production process, materials and production standard maybe has a few of different.

---For the Flexible Twisted RVS cable, according to the practice, the common specification is 0.75～2.5mm².

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

RAW MATERIAL

PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
