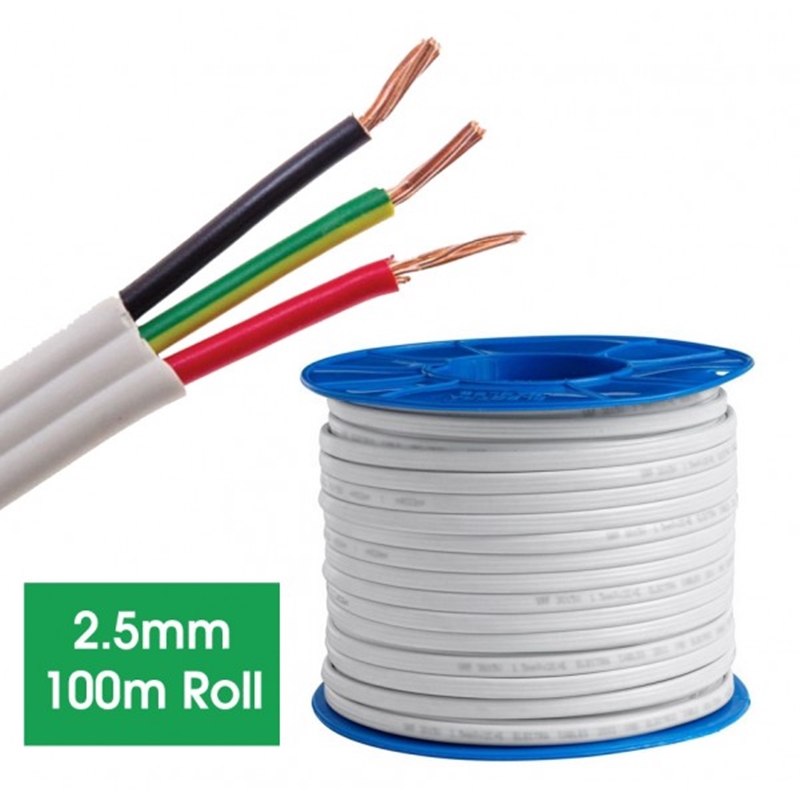

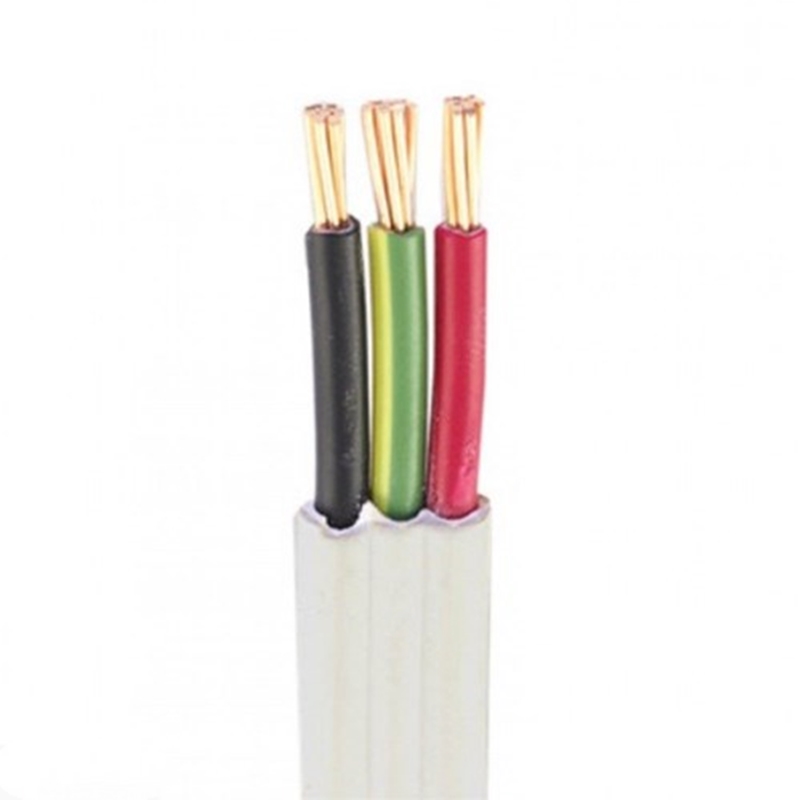

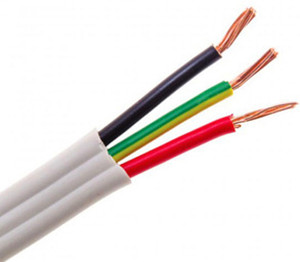

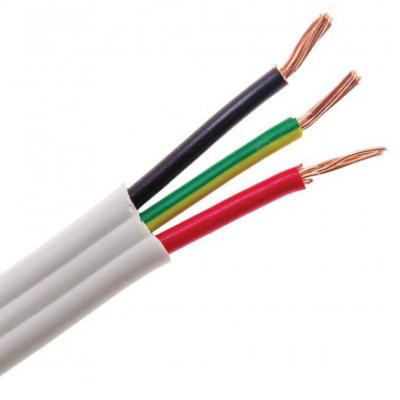

AS/NZS 5000.2 Flat TPS BVVB Electrical Cable

AS/NZS 5000.2 Flat TPS BVVB Electrical Wire and Cable

MAIN KEYWORDS

BVVB, flat TPS cable, PVC flat cable, PVC flat + earth cable, PVC flat 2C+E cable.

APPLICATION CHARACTERISTICS

2 & 3 cores flat TPS BVVB cable, for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage. Compared with IEC 60227 and BS 6004 standard products, it mainly has the following differences:

① colour of insulation and sheath.

② material of insulation & sheath.

③ working temperature.

④ conductor structure.

⑤ structure and color of earth wire.

⑥ sheath surface.

⑦ voltage rated.

PRODUCTS STRUCTURE

---Conductor Material

    Plain annealed copper wire, solid class 1 (1.0 mm²), strand class 2 (1.5～16 mm²).

---Insulation Material

    V-90 PVC (Polyvinyl chloride).

---Insulation Colour

   2C: red, black; red, white. 3C (2C + earth): red, black, yellow/green (E); red, white, yellow/green (E).

---Sheath Material

   3V-90 PVC (Polyvinyl chloride).

---Sheath Colour

    White

---Voltage Rate (U₀/U)

   450/750V

---Working Temperature

   -15℃～+90℃.

---Minimum Bending Radius

   Up to 6 mm2: 6 x O.D., 10～35 mm2: 10 x O.D.

---Products Appearance

   Flat (it is not round/circular).

---Production Standard

   AS/NZS 5000.2, AS/NZS 1125

---Production Delivery

    Within 7-10 working days as soon as we received the deposit.

REMARK

---The above information is for reference only, for the formal data, please refer the actural products.

---Please do not install in direct contact with polystyrene or polyurethane insulation materials.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 105 degree, but the production process, materials and production standard maybe has a few of different.

---For the flat TPS BVVB cable (earth wire is optional), according to the practice, the common specification is 0.75～4 mm².

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

MAIN ADVANTAGE

HOT-SELLING PRODUCTS

RAW MATERIAL

PRODUCTION PROCESS

INSPECTION PROCESS

FREQUENTLY ASKED QUESTIONS

1. Are you the manufacturer or trading company?

Wuhan Xitiandi Electrical Technology Co., Ltd (Hante Cable), is the professional in wire and cables manufacturer. We can control your order from the first begining to the last. Welcome to visit Hante Cable, we'll pick you up in Wuhan airport or high-speed Railways Station.

2. How can I get a sample to test your quality?
Hante Cable can provide the free sample to you, but you will pay the express charges.

3. What’s your Minimum Order Quantity?
For electrical wire, the MOQ is 1000 meters; for power cable, the MOQ is 200 meters; of cources, the MOQ can be negotiated. But in order to save the shipment space and cost for you, Hante cable suggests that the MOQ of electrical wires should be more than 3000 meters, and the MOQ of power cable should be more than 500 meters.

4. Can I get a discount?
It depends on your quantity, we can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
