RE-2X(st)H XLPE insulated shielded LSZH sheath electric cable

RE-2X(st)H XLPE insulated shielded LSZH  sheath electric cable

MAIN KEYWORDS

RE-2X(st)H cable, BS EN 50288-7 cable, LSZH electric cable.

PRODUCTS APPLICATION

Hante^@ brand RE-2X(st)H XLPE insulated shielded LSZH  sheath electric cable, these cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g. petrochemical industry etc.). Not suitable for direct burial applications. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment.

These cables are designed to connect electrical instrument circuits and provide communication services in and around process plant (e.g. Petrochemical industry etc.). Not suitable for direct buried application

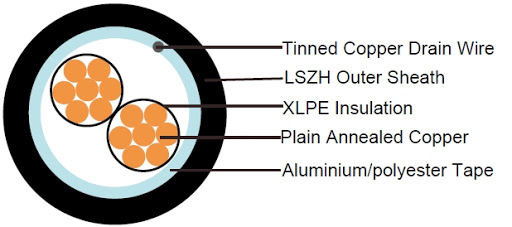

PRODUCTS STRUCTURE

---Conductor Material

     Plain annealed copper wire, strand class 2.

---Insulated Material

    XLPE (Cross-Linked Polyethylene)

---Insulated Color

    1 core: natural color

    2 cores: blue, brown & bare earth.

    3 cores: brown, black, grey & bare earth.

    4 cores: blue, brown, black, grey.

    Pairs: white, black.

    Numbered triples: white, black, red.

---Collective Screen Material

    Al/PET (Aluminium/Polyester Tape)

---Drain Wire Material

   Tinned copper

---Sheath Material

    LSZH (low smoke zero halogen)

    PVC (Polyvinyl Chloride)

---Sheath Color

    Black, blue, or others.

---Voltage Rate

    300/500V, 450/750V.

---Operating Temperature

     Fixed: -40°C to +80°C

     Flexed: 0°C to +50°C

---Minimum Bending Radius

     6 x overall diameter

---Production Standard

    BS EN 50288-7, BS EN 50288-1, HD383

---Flame Retardant Standard

    BS EN/IEC 60332-1-2, BS EN /IEC 60332-3-24

---Production Delivery

    Within 7-10 working days as soon as we received the 30% deposit before the shipment.

---Packing Type

    100 meters per roll, plastic reel, plywood drum, wooden pallet, wooden drum or others.

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability.

---All the information is provided in good faith and is believed to be correct at the time of publication; when selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Hante Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Hante Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

---Hante Cable: it is your Production Base, Overseas Warehouse, Purchase Consultant in wire and cable industry.
